Schaller staggered post heights = no string trees needed?
- Thread starter tiscoat
- Start date
ghostrider25
Senior Member
- Messages
- 230
You are correct. I have them on a few of my guitars and have never had the need for a string tree.
If it’s not much trouble recalling. Can you tell what post heights you’ve used for:?You are correct. I have them on a few of my guitars and have never had the need for a string tree.
E
A
D
G
B
E
stratamania
Mythical Status
- Messages
- 11,500
Schaller staggered work well. Heights E, A, D 21.0 mm and G, B and E 19.5 mm. No string trees needed.
Last edited:
Whoa! What nut is that?Yes, Schaller and Sperzel were introduced in the Strat Plus back in the 80s and those guitars never had strings trees, that is also another reason why they remain in tune well.
Bob Hoover Ross
Junior Member
- Messages
- 179
Pretty sure those were made by LSR. Called it the "roller nut" iirc.
...but I could be totally mistaken!
TBurst Std
Hero Member
- Messages
- 3,229
Nope, it’s a Wilkinson nut. No longer made. It is a roller nut. Closest you can get now is a LSR. They use a different shelf from each other so are not interchangeable.
stratamania
Mythical Status
- Messages
- 11,500
Correct, although a Fender LSR part is supplied with a black coloured shelf that the LSR can sit on so that it can retrofit as a replacement that specific Wilkinson roller nut shelf.
You are correct...they started with the Wilkinson nut and then in the early 90s they switched to LSR...I know as a fact as my Warmoth scalloped neck I bought many years ago was cut for that nut.
I use the tremolo a lot and I can say the combo Sperzel(Schaller) + LSR (Wilkinson) nut + American standard bridge keeps a Strat well in tune, not as much as FR but it gets very close. OF course eliminating the string trees, even the low friction one is VERY beneficial.
The Plus series for that era was a very advanced guitar IMO, and it´s a shame it is not well considered today.

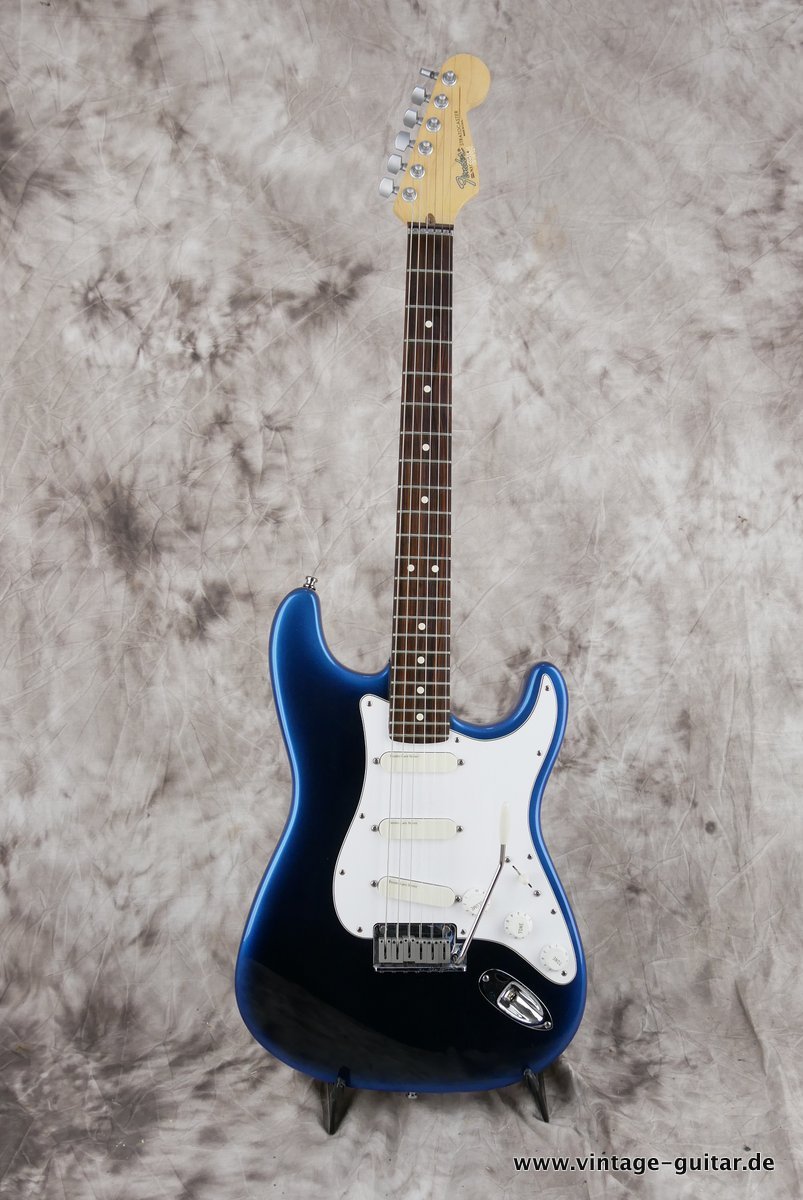

Strat plus 1988.
Strat Plus 1993.
Last edited:
stratamania
Mythical Status
- Messages
- 11,500
There is currently no nut made by LSR.
Wilkinson made the original nut on the Strat plus. The LSR is now made by Fender.
Last edited:
supertruper1988
Senior Member
- Messages
- 346
LSR was a separate company that got absorbed into FMIC at some point. They made tuners as well.
stratamania
Mythical Status
- Messages
- 11,500
Okay, good to know. Will edit my above post.
Out of interest, I found these on Reverb, previously available and unused.
I used them on my Strat int he late 90s after recommendation of my luthier, he thought they would have become the next big thing.
Unfortunately they did not, I remember few Jacksons using them back then, now they are completely forgotten.
Rick
Epic Member
- Messages
- 6,548
Guitar Tuner Upgrade Kit for 6 Inline Headstocks (10mm Post Hole)
Grip-Lock™ Open Dimensions Classic Open Dimensions Instructions Grip-Lock™ Closed Dimensions Classic Closed Dimensions UMP™ Dimensions Give your guitar a killer look and improve your tuning stability at the same time with the Hipshot® Tuner Upgrade Kit for 6 Inline headstocks. Whether you want...
hipshotproducts.com
stratamania
Mythical Status
- Messages
- 11,500
I do not remember them; they must have passed me by.
Hipshot currently sells tuner buttons called Industrial that look like those on the LSR tuners pictured earlier. Perhaps where they got the idea from?
Bob Hoover Ross
Junior Member
- Messages
- 179
Thread Drift: I installed a set of ^^^those LSR tuners on an old Yamaha strat-clone I owned many years ago. When they worked they were some of the most precise, smoothly-operating guitar tuners I have ever encountered, second only to the Steinberger system.
But
- A) they didn't always work; parts would jam or get stuck, and god help you if the end of a string broke off in the "clamp" because then it required micro-surgery to restore operation
- B) they were built like crap: cheap pot metal that would bend if you just looked at them funny. I finally got rid of mine when the threads that held the low E tuner to the mounting plate stripped out -- just from ordinary use (!!!)
Brilliant idea, horrible execution. Someone should take that LSR tuner concept and make a real Schaller/Sperzel-quality (or better) tuning machine. That I'd buy again. LSR? No thanks.
electric__steve
Junior Member
- Messages
- 147
I’ve got those RiotWorks tuners bookmarked; I really want to try them out. I’ve got an idea for a reverse-bodied offset build, a Jazzbird or Firemaster, which would be perfect.
