One more for the road

[ragamuffin]

Over the past ten years I've built around seven and a half-ish guitars and learned a lot about my preferences, had a lot of fun, and gained new skills along the way. And while it's highly unlikely that I'll ever stop building guitars, due to some upcoming life changes, and because I've honed in on my preferred specs, this upcoming build might be my last... at least for the near future.

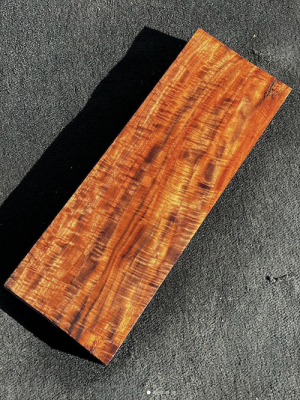

I did a thing today and ordered this beautiful hunk of figured claro walnut from Larose Guitars on instagram, who will be re-sawing it for me into a .6" carve top



Tentative specs:
-Lp doublecut/Ibanez Artist type shape
-Carved walnut top
-Korina core with tummy cut and heel access
-HH with some good p.a.f. type humbuckers, probably Wolfetone or Zhangbucker
-Volume, tone, bass cut wiring
-25.5" scale length
-Recessed Hipshot t.o.m. stringthrough
-'59 roundback vortex neck, probably canary with zircote board



[Spud]

Over the past ten years I've built around seven and a half-ish guitars and learned a lot about my preferences, had a lot of fun, and gained new skills along the way. And while it's highly unlikely that I'll ever stop building guitars, due to some upcoming life changes, and because I've honed in on my preferred specs, this upcoming build might be my last... at least for the near future.

I did a thing today and ordered this beautiful hunk of figured claro walnut from Larose Guitars on instagram, who will be re-sawing it for me into a .6" carve top

View attachment 61082

Tentative specs:
-Lp doublecut/Ibanez Artist type shape
-Carved walnut top
-Korina core with tummy cut and heel access
-HH with some good p.a.f. type humbuckers, probably Wolfetone or Zhangbucker
-Volume, tone, bass cut wiring
-25.5" scale length
-Hipshot hardtail bridge
-'59 roundback vortex neck, probably canary with zircote

Sometimes ya gotta know when to say when. The Velocity is going to be my last one too and wasn't going to happen if not for the 50 dollar body. I just wanna play some now. I have enjoyed the hell out of your builds and you great sense of humor. This new build looks incredible!



[TBurst Std]

Figured walnut is a gorgeous wood



[TBurst Std]

I have a few builds that I have some parts for. Otherwise no more as I’m out of space.

I mean my office looks like a guitar store and they are not even all out.



[teleme01]

Always time for 1 more



[Spud]

I just logged back on to say this. Ragamuffin, F, that I enjoy watching your builds progress too much. You will keep going ad nauseam!



[Hodgo]

Gorgeous chunk of wood to start, love the plan.

If you’re open to suggestions for the P.A.F.s, check out Re-wind Electric. James prices have gotten much higher, but they ended my search for a Les Paul/humbucking guitar about 10 years ago… and I’d have a hard time not buying another pair if I ever outift another one.



[ragamuffin]

Thanks guys! Even if this is my last I don't think I'll be going anywhere; got to live vicariously through others' builds
Can't wait to get started on this one!



[ragamuffin]

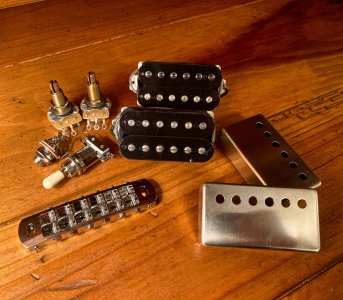

The parts are starting to come in! Most of which have been easy to procure, but I'm having a hard time finding a 1meg reverse audio taper pot for my bass cut; normally I buy them from G&L's website, but they're sold out there.

Scored a set of Zhangbucker pickups on Reverb for a good price, they're the "Brownbucker" and "Woodbucker" set, the bridge being on the hotter side of p.a.f. territory.



[Spud]

amplified parts has em but they are Alpha's



[ragamuffin]

amplified parts has em but they are Alpha's

Yeah in particular I'm hoping to find a long shaft pot, thanks though. Now that I think of it I might have an extra from a previous build floating around somewhere... somewhere being the key word.



[ragamuffin]

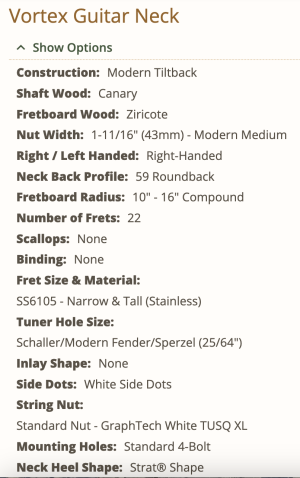

Ordered my neck yesterday, love me some canary and ziricote!



[Spud]

Someone is a small fret fella



[ragamuffin]

Someone is a small fret fella

Yeah my first nice guitar was a Gibson with tiny vintage frets and it just kind of stuck.
6150s are ok by me, but anything bigger than that just feels wrong haha



[ragamuffin]

I'm getting antsy to start this build! But the wood isn't here yet and the body template that I ordered will probably be another week or two...

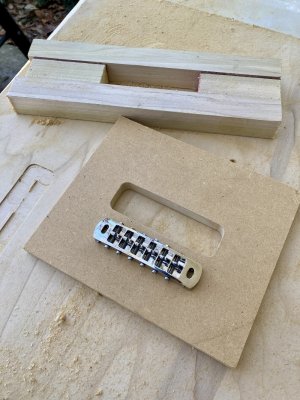

So I'm getting prepped instead; I made this template for recessing the bridge today and I'm getting all my parts and tools in order.



[Spud]

I'm getting antsy to start this build! But the wood isn't here yet and the body template that I ordered will probably be another week or two...
So I'm getting prepped instead; I made this template for recessing the bridge today and I'm getting all my parts and tools in order.


View attachment 61179

I dig it!



[ragamuffin]

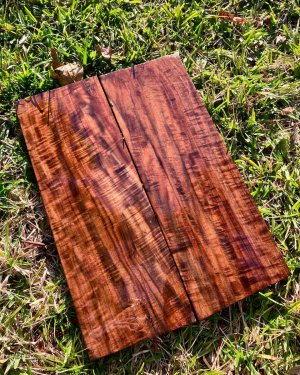

Wowza!! I got a beautiful hunk of walnut today, shown flooded with mineral spirits.

The only problem is that Larose didn't plane it like they said they would... Actually I don't think they planed it at all; looks like they just pushed it through the bandsaw and mailed it to me. Which would be a pretty big issue for me since I don't own a planer, but luckily I have some friends at the wood shop at the USF art department which has a big 'ol planer and if I cry a little will probably plane it for me.



[Spud]

Ya gotta plane em!



[stratamania]

It looks like a nice piece of walnut, and a tool purchase opportunity if you need an excuse.



[Spud]

Ya know what DON'T plane em and name the guitar "Lumpy"
