Crazy Jazzmaster Build coming soon...
- Thread starter McHale
- Start date
McHale
Junior Member
- Messages
- 26

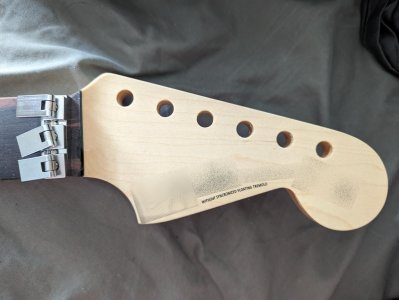

The only thing Jazzmaster about it will be the body shape and upper controls. According to a bandmate, it's completely ridiculous. A hardtail with locking nut and locking tuners makes him cringe. For me, it's all about the convenience of fast and easy string changes and tuning stability. I actually have 2 similar Jazzmaster builds going on at the same time but this thread will be dedicated to the Warmoth build. The neck, body, pickguard, and most parts are from Warmoth. This will not be gigged in my band.
The other build I took an existing Jazzmaster and doing a very similar config (minus the locking nut and 50's style jazzmaster controls). I'm going to finish this one first to see if I like the 3 way freeway switch. If I do it will change whether or not I make additional cutouts on the Warmoth pickguard.
The other build I took an existing Jazzmaster and doing a very similar config (minus the locking nut and 50's style jazzmaster controls). I'm going to finish this one first to see if I like the 3 way freeway switch. If I do it will change whether or not I make additional cutouts on the Warmoth pickguard.
BroccoliRob
Hero Member
- Messages
- 1,023
does the hard tail have fine tuners?? as much as daddy loves his Floyd's and as well set up as i can make them, i always need a tiny bit of futzing (not a cuss, FYI, its a real word) with the fine tuners to get things back to perfecto after locking the lock nut
TBurst Std
Hero Member
- Messages
- 3,080
Not sure about locking tuners AND a locking nut. I understand tuning stability, but I can play live on stage for an hr plus before needing to adjust (normally for temp changes). I always thought I was sensitive to tuning. Got proved right the other night at rehearsal. Keyboard sound off. Sure enough it was 442 Hz and not 440.
McHale
Junior Member
- Messages
- 26
It does. For my "live" JM, I'm using one of those TP-6 knockoffs. I've purchased a few different brands of them and finally found a high quality one. For the Warmoth build I'm using the Schaller stop tail with fine tuners. Sadly, when I decided to build this they were out of production and no amount of calls to Schaller could find one and calling every vendor online that claimed to have one yielded nothing. By luck, I found a Schaller made fine tuning stop tailpiece that they OEM'd for some boutique builder. I'll run that until I can locate a minty Schaller.
I've got a lot of guitars with trems on them and as much as I like to pretend, I'm not Eddie Van Halen. I don't play like him nor would his whammy tricks work in the music I play and am more than content with a fixed bridge. Like you I really like the fine tuners on a bridge/tailpiece for fine tuning.
Last edited:
McHale
Junior Member
- Messages
- 26
Locking tuners and a locking nut perform two separate functions.
The locking tuners allow me to restring a broken string in less than a minute. The locking part grabs the string so you don't need a bunch of winds and it cuts down on binding issues when making the strings do funky things. It's purpose for me is easy/fast string changes only. I have the same tuners on all of my guitars now. They aren't really any cheaper to NOT get locking tuners.
The locking nut eliminates any potential for string binding at the nut. The Bill Edwards locking nut keeps the string changes fast.
stratamania
Mythical Status
- Messages
- 11,022
I noticed it but did not comment as the decal is borderline regarding the forum rules.
McHale
Junior Member
- Messages
- 26
ooof. didn't realize. Tnx!
McHale
Junior Member
- Messages
- 26

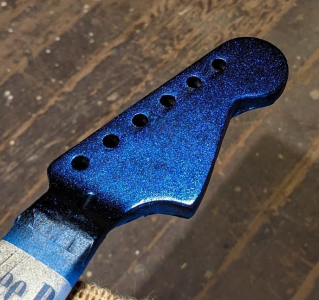

So I got a few layers of paint on the headstock of JM#2 (this is the refinished Jazzmaster where I'll be testing some things before I complete my Warmoth build). I learned a VERY valuable lesson on JM#2. Wet sanding when there are pre-existing drilled holes leads to cracks in the wood and existing finish. Oh well, it is what it is. The pickguard is going to cover them up for the most part (at least I think).

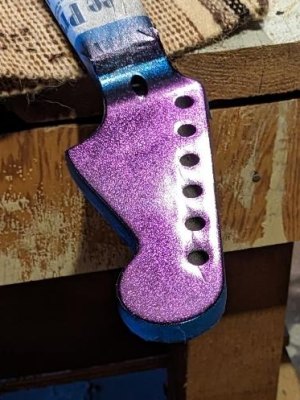

I had to stand at a distance to get the color changing effect but you can sort of see it. I hope the body shows it better.
I had to stand at a distance to get the color changing effect but you can sort of see it. I hope the body shows it better.
McHale
Junior Member
- Messages
- 26

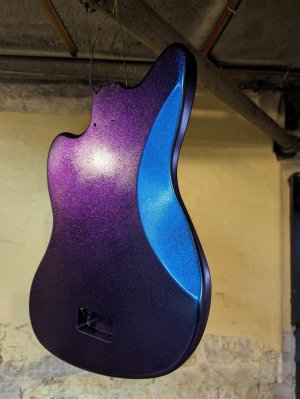

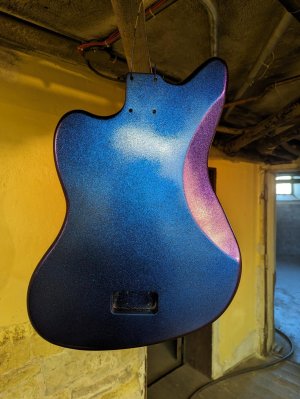

Have a few coats on the body now. I'm not good at painting stuff but it will look decent once I get some clear and the hardware on there. As it'll be my main gigging guitar it's going to get banged up eventually anyway.
Looking forward to getting this done so I can finish the Warmoth build (with a professional finish).
Looking forward to getting this done so I can finish the Warmoth build (with a professional finish).
Attachments
McHale
Junior Member
- Messages
- 26
This 1 million percent. On the body above, I didn't bother with wood filler. I sanded it down, put on the primer coat and went to town on the chameleon paint. The dents I would have patched up are going to be back soon. It's just how it goes when you play live. I play guitar and keys (often at the same time) so the guitar hitting the keyboard and/or stand happens a few times a night even when I'm careful. My Warmoth build stays at the house. In fact, I decided to not even put strap buttons on it. It'll be my jazz/finger picking guitar. I have enough guitars with similar specs I can knock over on stage.
oliviaadair
Junior Member
- Messages
- 93
That galaxy themed colorway looks awesome. How's your build project?
McHale
Junior Member
- Messages
- 26

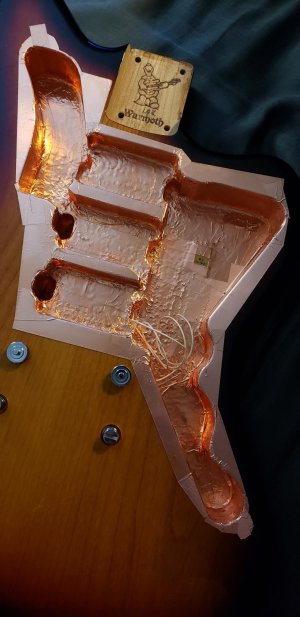

The Warmoth guitar is stuck in a holding pattern. All of the parts are gathered and mounted. All that needs to be done is finish wiring the pickguard. I can't do that until I finish the one I just refinished. On JM#2 I'm installing a Freeway Threeway switch. I need to know how that works/sounds. If I like it, I'll use that on the Warmoth. If not, I have to cut up the Warmoth pickguard to add switching options.
The good news is, both guitars are close. All that needs to happen on JM#2 is clear (and wait to cure). The pickguard is soldered up and ready to install.
