I posted (http://unofficialwarmoth.com/index.php?topic=24807.msg359089#msg359089) several months back asking for advice on attempting to build a replica of Alex Lifeson's white Hentor Sportscaster, a modified strat he used on the Grace Under Pressure album and tour. I saw that Alex's luthier got his permission to build and sell replicas based on the original's specs, however these were going for prices a tad over my horizon (~$3.3k). So I ventured to build one myself. (Fortunately, the specs were listed in pretty good detail on the luthier's site. The rest I was able to scrounge up by creeping after him on forums and browsing his Photobucket pics.) I was able to build it for around $1,200 without cutting corners on hardware.
All in all, I'm extremely pleased with how it turned out. This was my first build. I couldn't be happier with the quality of the Warmoth body and neck.
The biggest challenge on this build is the Gibson-style 3-way switch routed into the lower cutaway. Fortunately, I have access to AutoCAD, so I could take measurements and design a fairly accurate route path.

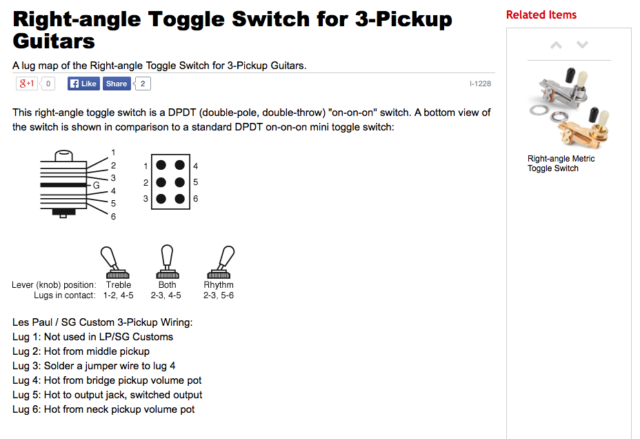

I didn't pay enough attention to my schematics and had to order a switch with more poles. This selector switches Neck, Neck/Middle, Bridge.
Lucky for me, I have a good friend who has, of all things, a $6k laser engraver sitting in his garage. So, he ran a router template for me on plexi from my AutoCAD file.
So with no small amount of trepidation, I took to preparing to route the switch pocket. This involved copious amounts of blue tape and several practice runs on blanks with a brand new blade.
The results were satisfactory. Alder smells great when it's cut.
Then I took to overdoing it with the shielding. In the end, I thought it looked really cool though. I did have to line the actual switch recess with non-conductive tape. The pocket was tight enough that the switch would short to ground in one direction when I'd switch positions.
The build calls for a Bill Lawrence L500L HB in the bridge position. This was the original "Wilde" or "Bill & Becky" pickup, not the Bill Lawrence USA L500L. I was happy to learn that Bill's wife is still making these pickups by hand in Los Angeles. I endeavored to order one. Anyone who knows Wilde pickups knows that they don't stock much inventory. I had to wait for it to be built. I had to wait a long time, over two months. But, it arrived and it was worth the wait!
The pickup on the left is the "Bill & Becky" L500L. The one on the right is the Bill Lawrence USA L500L (which are easy acquired, but do sound different).
The L500L is a strange size, and Warmoth doesn't offer a stock cut for it, so I went with the closest size (which I think was the P90 route?) and addressed the small remaining gap by installing the pickup ring on the internal side of the pick guard. Took a little dremel magic, but it finished up nice.
The two single coil pickups are DiMarzio FS-1s.
The factory locking nut cut is such a convenience. This would have been such a pain to retrofit.
The P/G took me a little over an hour. Well, it took me about 2.5 hours in all because there was some troubleshooting once the guitar was setup and played. I read the schematic wrong and grounded half the hum bucker (whoops). Notice how the red and green wires are not grounded (like the blue and black), but simply twisted together? :icon_thumright:
I found this schematic on a forum and snatched it.
An oddity of the original Hentor, the 1/4" jack plate is inverted. I really like it, particularly with a right angle plug threaded through the strap.
My buddy who helped me with the router guide is having a neck plate "lasered" with the classic Rush "Starman". Haven't got that piece yet...
Well here you go. My finished Hentor Sportscaster. Plays like a dream. Sounds spot on! That neck is glorious. It's heavier than my PRS Custom 24, much thicker body. Floyd tuning is solid. Once I got the intonation spot on, I was in dive bomb heaven. lol. Still need to create a Hentor decal for the head.
This project was so satisfying, I think I'm going to build a guitar every year. I was actually quite surprised that I could do it and that it would turn out so well. Again, the Warmoth parts are perfect. May try something a tad easier and less specific next time.
All in all, I'm extremely pleased with how it turned out. This was my first build. I couldn't be happier with the quality of the Warmoth body and neck.
![5Sz5NA.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F922%2F5Sz5NA.jpg&hash=c3173492459e43269c2bffab43bb8c07)
The biggest challenge on this build is the Gibson-style 3-way switch routed into the lower cutaway. Fortunately, I have access to AutoCAD, so I could take measurements and design a fairly accurate route path.
![RsGT7a.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F923%2FRsGT7a.jpg&hash=daf49f28f70fa69c8e329a225621fde7)
![odOS6I.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F921%2FodOS6I.jpg&hash=d6c79e9ed6ac366d1a0f4a91883ddc13)
I didn't pay enough attention to my schematics and had to order a switch with more poles. This selector switches Neck, Neck/Middle, Bridge.
![D5Kkef.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F924%2FD5Kkef.jpg&hash=d296e72e4bc0ef6964be3710eb556931)
Lucky for me, I have a good friend who has, of all things, a $6k laser engraver sitting in his garage. So, he ran a router template for me on plexi from my AutoCAD file.
![2VLwpK.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F923%2F2VLwpK.jpg&hash=97cb436f2bf8fa9e079688a86caeb0e4)
So with no small amount of trepidation, I took to preparing to route the switch pocket. This involved copious amounts of blue tape and several practice runs on blanks with a brand new blade.
![sJkNhu.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F923%2FsJkNhu.jpg&hash=7cd57e85c2f71f5583fccad9ac16ec89)
The results were satisfactory. Alder smells great when it's cut.
![oHCoUH.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F924%2FoHCoUH.jpg&hash=5b64ed106877d2531ac9682995ea623e)
Then I took to overdoing it with the shielding. In the end, I thought it looked really cool though. I did have to line the actual switch recess with non-conductive tape. The pocket was tight enough that the switch would short to ground in one direction when I'd switch positions.
![cKKs5p.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F924%2FcKKs5p.jpg&hash=3bcd095c35e143002bf6865205435b76)
![DdNBX1.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F922%2FDdNBX1.jpg&hash=b68fb0b28f28a0879fe8c8b7feea3e26)
![EOGbAW.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F923%2FEOGbAW.jpg&hash=84a3d76e5f5a88aecfa6dcf34c196a9e)
The build calls for a Bill Lawrence L500L HB in the bridge position. This was the original "Wilde" or "Bill & Becky" pickup, not the Bill Lawrence USA L500L. I was happy to learn that Bill's wife is still making these pickups by hand in Los Angeles. I endeavored to order one. Anyone who knows Wilde pickups knows that they don't stock much inventory. I had to wait for it to be built. I had to wait a long time, over two months. But, it arrived and it was worth the wait!
The pickup on the left is the "Bill & Becky" L500L. The one on the right is the Bill Lawrence USA L500L (which are easy acquired, but do sound different).
![I7z9MH.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F924%2FI7z9MH.jpg&hash=6edfbbf9d086bc1e282e3f00d1e5508d)
The L500L is a strange size, and Warmoth doesn't offer a stock cut for it, so I went with the closest size (which I think was the P90 route?) and addressed the small remaining gap by installing the pickup ring on the internal side of the pick guard. Took a little dremel magic, but it finished up nice.
The two single coil pickups are DiMarzio FS-1s.
![UyYL0X.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F921%2FUyYL0X.jpg&hash=85090ff5107b646ffb98ce8cd6055161)
The factory locking nut cut is such a convenience. This would have been such a pain to retrofit.
![9VHG5m.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F923%2F9VHG5m.jpg&hash=bd85a355d0c1edd7e81037038a4ec8b4)
The P/G took me a little over an hour. Well, it took me about 2.5 hours in all because there was some troubleshooting once the guitar was setup and played. I read the schematic wrong and grounded half the hum bucker (whoops). Notice how the red and green wires are not grounded (like the blue and black), but simply twisted together? :icon_thumright:
![OdqYrI.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F923%2FOdqYrI.jpg&hash=780e557cb81f36d05cf0ee56c5bdfc84)
I found this schematic on a forum and snatched it.
![fcDlde.png](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F923%2FfcDlde.png&hash=dd8a6ab6bc45eca31e8328a34b64cc5e)
An oddity of the original Hentor, the 1/4" jack plate is inverted. I really like it, particularly with a right angle plug threaded through the strap.
![aTCmUA.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F922%2FaTCmUA.jpg&hash=47cb25d2cd50f0c324476d9a59e994e3)
My buddy who helped me with the router guide is having a neck plate "lasered" with the classic Rush "Starman". Haven't got that piece yet...
![U4J7O2.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F924%2FU4J7O2.jpg&hash=2397f23351c00acf3c90300b59dd5bfa)
Well here you go. My finished Hentor Sportscaster. Plays like a dream. Sounds spot on! That neck is glorious. It's heavier than my PRS Custom 24, much thicker body. Floyd tuning is solid. Once I got the intonation spot on, I was in dive bomb heaven. lol. Still need to create a Hentor decal for the head.
![JpkkJS.jpg](/proxy.php?image=http%3A%2F%2Fimagizer.imageshack.us%2Fv2%2F1024x768q90%2F921%2FJpkkJS.jpg&hash=988a6009675d702d85c1c126632d7ab5)
This project was so satisfying, I think I'm going to build a guitar every year. I was actually quite surprised that I could do it and that it would turn out so well. Again, the Warmoth parts are perfect. May try something a tad easier and less specific next time.
