Properly grounding an HH Tele w/Bigsby

[ghostrider25]

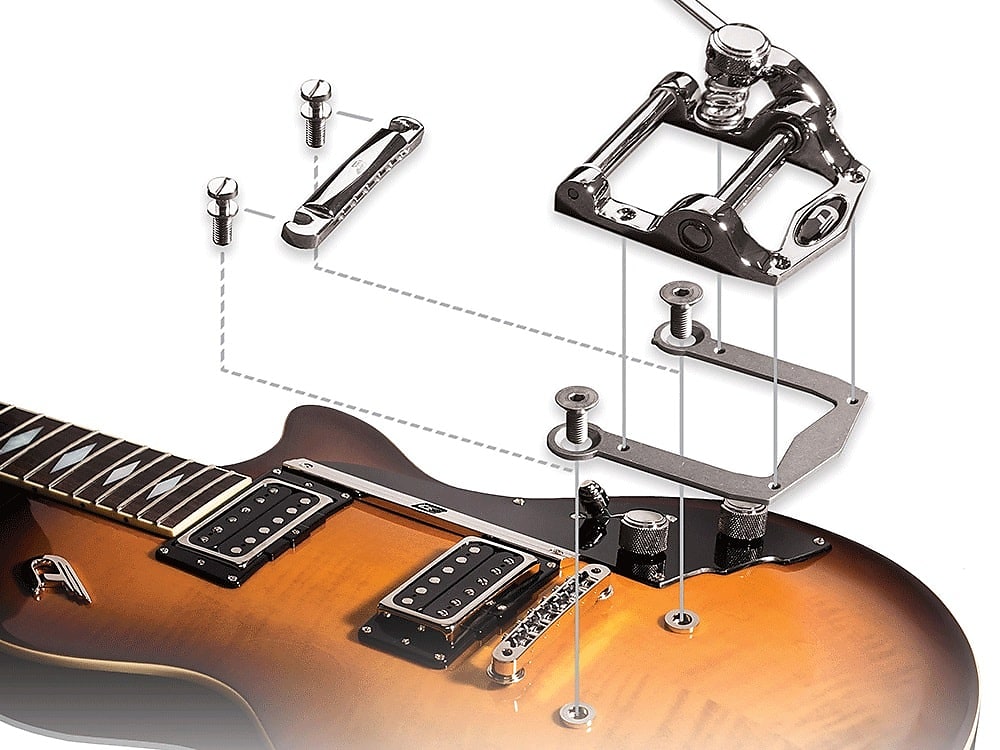

I’ve assembled quite a few Warmoth Strats but I plan to do my first Tele soon which will be a rear routed HH with TOM bridge and a Bigsby-like trem (Duesenberg Diamond Tremola) attached to the TOM tailpiece studs via this adapter.

My question is, how would I properly ground the strings for this kind of setup? I’m used to grounding to a trem claw or a hard tail Hipshot bridge which this setup obviously won’t have.



[Spud]

I’ve assembled quite a few Warmoth Strats but I plan to do my first Tele soon which will be a rear routed HH with TOM bridge and a Bigsby-like trem (Duesenberg Diamond Tremola) attached to the TOM tailpiece studs via this adapter.

My question is, how would I properly ground the strings for this kind of setup? I’m used to grounding to a trem claw or a hard tail Hipshot bridge which this setup obviously won’t have.

Usually a TOM is grounded through a hole to the bridge stud.



[ghostrider25]

Thank you. I'll take a look.



[ejphotos]

Usually a TOM is grounded through a hole to the bridge stud.

Yep, this



[ghostrider25]

I finally got around to looking under the hood. Lo and behold, there is a wire that I would wager is that grounding wire to the TOM stud (?)



[stratamania]

I finally got around to looking under the hood. Lo and behold, there is a wire that I would wager is that grounding wire to the TOM stud (?)

View attachment 63580

That is what that wire is. For certainty, you can always test continuity between that and the bridge.



[ghostrider25]

Thanks everyone!
