Pro Contour Heel In Progress...with Completed Build Link...

[NovasScootYa]

Since Fender Contour Heel bodies are somewhat expensive and only available with humbucker and tremolo routs I used a standard 4 Bolt Warmoth Hardtail Body and added a Fender Style Contour Heel with the help of a ProAttach II Kit. Without a ProAttach II Kit it is nearly impossible to attach/screw a Pro Construction/Modern Neck to a Fender Contour Heel Body. Note the Warmoth "Area Of Incompatibility" photo below.

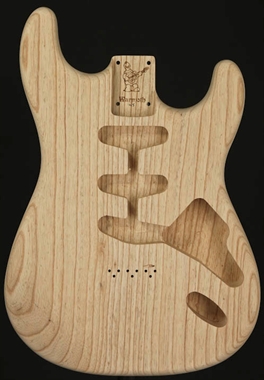

The Contour Heel Project began with a very nice Warmoth 4 lb. 5 oz. Ash Hardtail Body and a beautiful Pro Construction Quartersawn Goncalo-Ebony Neck, SRV profile, SS 6105 frets...

Contour heel layout below...

Installing glued spruce dowel short of pocket surface...

Contour Heel filed and sanded, note black dot for drilling...

Checking insert screw protrusion. The rail outline is traced for routing a recess...

Inserts installed in neck. ProAttach II Rail mounted on heel using two
#8-3/4" T-316 stainless wood screws. Wide rail mounting moves the load
point forward/closer to the original screw location

No longer an…

Proattach II is Rock Solid...

Completed Pro Contour...
http://www.unofficialwarmoth.com/index.php?topic=18052.0


More Strats from days gone by...

Canary and Banana Pudding
http://www.unofficialwarmoth.com/index.php?topic=8511.0

Heavy Duty…
http://www.unofficialwarmoth.com/index.php?topic=12603.0

Winter Wonderland…
http://www.unofficialwarmoth.com/index.php?topic=12367.0

1975 Rowing a Boatneck…
http://www.unofficialwarmoth.com/index.php?topic=8586.0

Warner Hardtail…
http://www.unofficialwarmoth.com/index.php?topic=13632.0

Happy Hardtail…
http://www.unofficialwarmoth.com/index.php?topic=11574.0

Strat Makeover…
http://www.unofficialwarmoth.com/index.php?topic=18544.0



[B3Guy]

:hello2: very elegant solution!  ccasion14:



[Orpheo]

Don't get it. it looks superslick, but whats the purpose of that metal plate?



[richship]

He's attaching to the metal plate at a shallow depth instead of a wood screw that would hit the side adjust. Nice job!

I'm just going to wimp out and use a vintage modern neck when I make my Deluxe Strat.



[rapfohl09]

Thats a great solution, nice work!



[llmtelecaster]

Very cool and interesting. So the two holes on the disc plate straddle the truss rod adjustment?



[NovasScootYa]

Very cool and interesting. So the two holes on the disc plate straddle the truss rod adjustment?

Yes they do which moves the forward disc mounting screw closer to the standard upper neck mounting location, helps with sharing the load/string pull a bit better. Thanks to all for your replies.



[crash]

This should be a sticky.



[JamesL]

I really really really really REALLY want to see someone do a modification like the on a warmoth contoured heel And have the best of both worlds!) So whenever one of you guys decides to try this, let me know!  :toothy12: :toothy12: :toothy12: :toothy12: :toothy12:



[back2thefutre]

...and a recessed neck plate. And many many naked women



[NovasScootYa]

Update: Now Painting, 2-3 weeks and on to Completed Strats.



[gigi]

Since Fender contour heel bodies are somewhat expensive and only available with humbucker routs I opted to convert a standard Warmoth body to a Fender style contour heel. Best of all the conversion uses a Pro Construction neck with the help of a ProAttach II Kit.

Project begins with a very nice Warmoth 4 lb. 5 oz. Ash hardtail body and a beautiful Pro Construction quartersawn Goncalo-Ebony neck, SRV profile, SS 6105 frets...

1) Initial contour heel layout.

2) Installing glued spruce dowel short of pocket surface.

3) Hand finished contour heel.

4) Checking insert screw protrusion and preparing to trace outline of ProAttach II disc.


5) Below plunge drilling shallow holes for recess followed by detail cleanup with a sharp chisel.

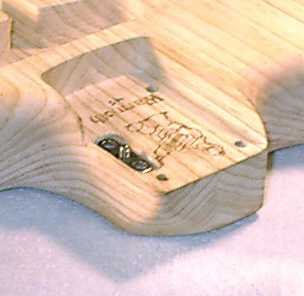

6) ProAttach disc in recess below pocket surface.

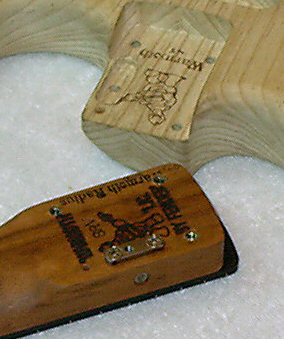

7) Inserts installed and ProAttach II disc mounted on heel using two #8-3/4" T-316 wood screws.

8) Rock solid mounting…

9) No longer an…

Build Update Photos Below...Assembled in tweaking stage, a few high frets found and seated, frets ends dressed, board properly rolled, setup plays beyond very well. SRV profile, Goncalo/Ebony was the right showcase choice and recommended. Bridge pickup missing and on order...Dark spot on contour heel is spruce dowel.

Build Update: Preparing to paint.



[gigi]

Awesome!  :headbang1:.  keeponkeepinon



[Super Turbo Deluxe Custom]

Love the custom work, especially when it gives someone exactly what they want.  I can appreciate that.  I also don't dig the Fender contoured heel either.



[T50]

Cool stuff!
