p-90s in a warmoth MUSTANG

[lazlo]

please help me i am trying to figure out
if p-90 pickups will fit into the universal routing
of warmoths mustang model
i know they do not offer p90 cuts on the pickguard
because of the traditional mustang switches

i plan on using a three way switch in between tone and volume control

so will a p-90 fit in a warmoth body mustang

please help !!!



[Hendrix]

The Wide of P90 is around same as the single Strat pickups.

So it  can fit in a warmoth body mustang .

only you need to select None cuts pickups hole on the pickguard , and DIY CUT it.



[rgand]

I ordered a pickguard one time with the neck pickup route cut but without the mounting holes on either end. Then I just opened up the route to fit the pickup and drilled the mounting holes where they needed to be. It requires a call to specially order but they were able to do it for me.



[Rick]

When I've had questions like this I've called Big-W and asked directly.  They'll tell you.  I've had pickguards that didn't fit the pups exactly and I've wound up sanding them a little to make them bigger (humbucker to trembucker situation).  And then I've had to take a dremel tool to make spaces bigger in the wood (control cavity).  It's all doable.



[Fat Pete]

The Wide of P90 is around same as the single Strat pickups...

Not to split hairs, but that scratchplate builder pic is a bit misleading - the width of the (visible) part of a Strat pickup is about 2.75" and a P90 is about 3.35". They'd still probably fit though, with some risk of needing a little wood removing - as Rick said, nothing too problematic though.

It would certainly be worth calling Warmoth to ask if they'd cut the pickguard for P90s.



[lazlo]

contacted warmoth
they are not willing to modify p90
cuts into there mustang pickguard
they say they never opened up options much
for the 24 scale line
i think they should reconsider that

i think i will be able to figure out how to get a custom guard cut
from a warmoth guard with p-90s

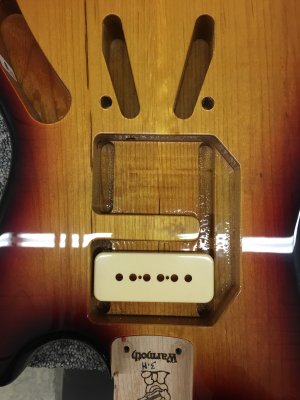

my main concern is if the p-90s will fit inside the 3.5 width of the universal warmoth mustang routeing



[Rick]

Another option for you are P90's in a humbucker form factor, that way you don't have to sweat it.  Phat Cat ... Rail Hammer are both excellent PUPs.



[new-killer-star]

Another option for you are P90's in a humbucker form factor, that way you don't have to sweat it.  Phat Cat ... Rail Hammer are both excellent PUPs.

I put p90s in humbucker size in my jaguar so I wouldn't have to sweat it...



[Logrinn]

You could even get Mustang (Strat-) sized P-90’s:



[Knorris]

Hope this helps lazlo.



[bagman67]

You could even get Mustang (Strat-) sized P-90’s:

If you're in the United States, you can get Rio Grande Dirty Harry Strat pickups that purport to do the same thing.  They'll likely be less expensive than the UK-based Creamery pups, but if you're in it to win it, i.e., get what you WANT vs. what you can barely afford, go big, man.



[bassetman]

I have a set of the Rio grande “ Dirty Harry” on a Tele. Very nice sound to them.
