Purple Quilt single humbucker strat

[rob91bob]

Some of you may have seen Tonar's work on the paint thus far on this guitar but I wanted to create an actual build thread for it.

To start this a a guitar that I had finished in 1998 or so, it is a flat top strat shape, alder body and beautiful quilted top, fixed bridge single humbucker guitar.

As you can see Tonar's work speaks for itself, simply stunning and I can't wait to see it with a million coats of clear and buffed!



[rob91bob]

The neck...

22 fret Padauk with ebony fret board, tilt back explorer type headstock with a heal adjust truss road, this is a vintage Warmoth neck, absolutely straight and solid.

Plans for the neck, I have ordered some gold Gotoh 18:1 locking tuners, it has a graphtech nut that was set up previously. Tonight I did my first inlay!

Compass rose, mother of pearl, ebony and holly. Made by Lee Henson of

https://www.elhensoninlayanddesign.com/

I had him make the inlay at exactly 1" diameter so that I can just use a forsner bit to recess it.



[rob91bob]

Rest of the plans for the guitar -

Hipshot gold fixed bridge

Dimarzio Fred humbucker

Push Push Volume knob to split coil

Tone knob

Q-parts gold knob with purple jem top

Gold football plate and switchcraft jack

Doug's custom plate in Gold, compass rose "Purple Phase" (reminds me I have to order that)

Bob



[Verne Bunsen]

Geez that finish is killer! I dig the compass rose inlay too, very cool.



[rob91bob]

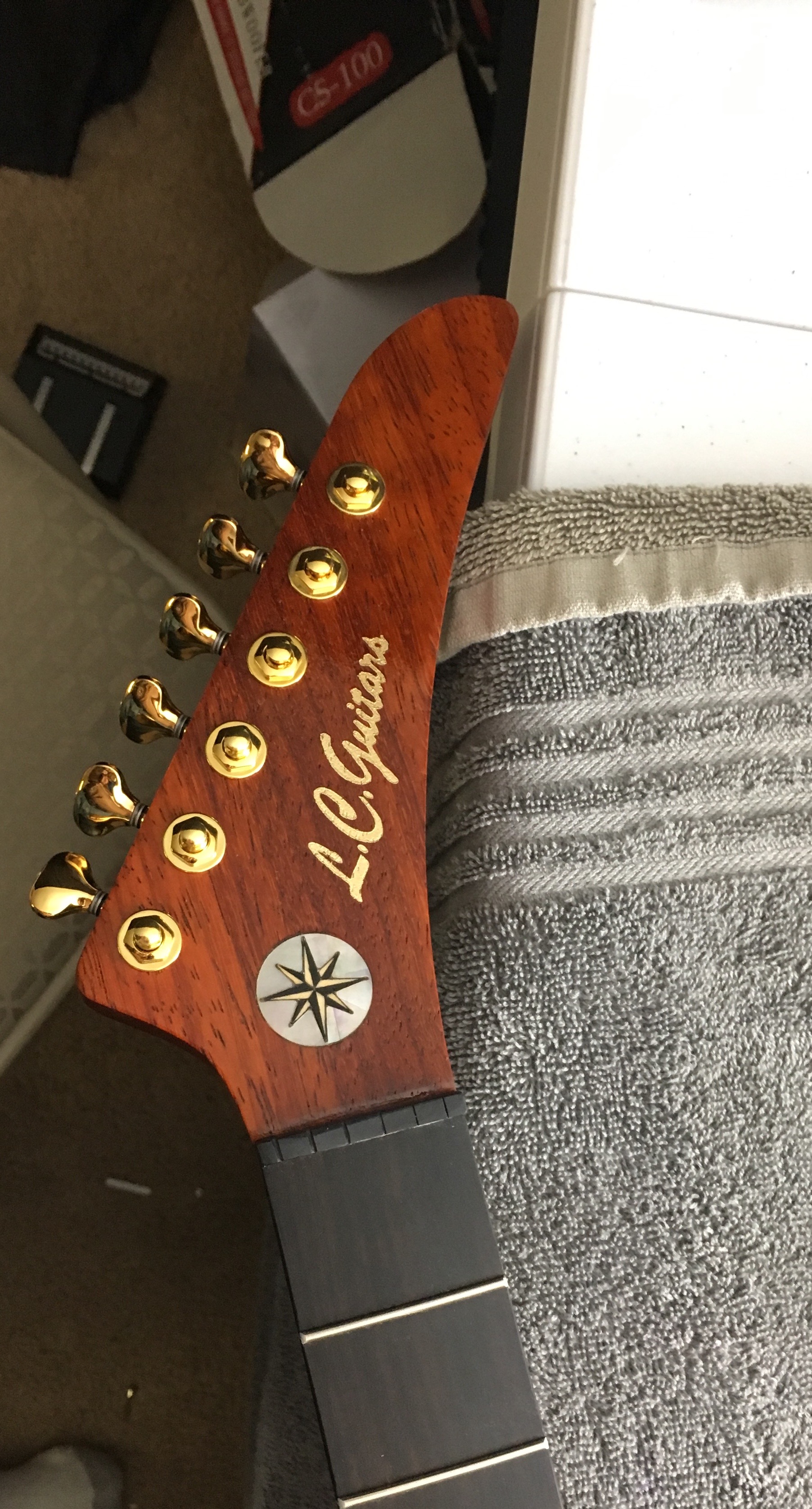

While I am patiently waiting for my body back from Tonar(AKA pulling my hair out) I decided to work on my logo on the headstock. I first tried a gold decal, made it way to big and ended up taking it off. Next I made a stencil and try my hand at some gold leaf. I think I love it! going to let it dry over night and hit it wish some shellac and then top it with some gloss lacquer after a few days. I plan on leaving the grain open.



[Zhaezzy]

Nice neck I have a very similar neck on a Jazzmaster I build from 98. Exploerer with ebony fingerboard padouk neck. Mine is 1 &3/4 nice and stable. Yous is still pretty orange mine is a deep red now.



[rob91bob]

Nice neck I have a very similar neck on a Jazzmaster I build from 98. Exploerer with ebony fingerboard padouk neck. Mine is 1 &3/4 nice and stable. Yous is still pretty orange mine is a deep red now.

Thanks, its been in a box for 20 years. I sanded the headstock down after I put in the inlay. The rest of the neck I sanded lightly to burnish it some, still have 800-2000 grit to go.

It was the best playing neck I ever played out of the box. 1 3/4 nut and 6150 frets.



[davegardner0]

I LOVE the headstock logo, very cool!! How did you make the compass rose looking thing? Is it an inlay or something on the surface?



[rob91bob]

I LOVE the headstock logo, very cool!! How did you make the compass rose looking thing? Is it an inlay or something on the surface?

I had the inlay made in a 1 inch circle. All I had to do was drill a 1 inch hole and set it.

http://www.elhensonwoodworking.com/

He can design about any inlay and laser cut it.



[rob91bob]

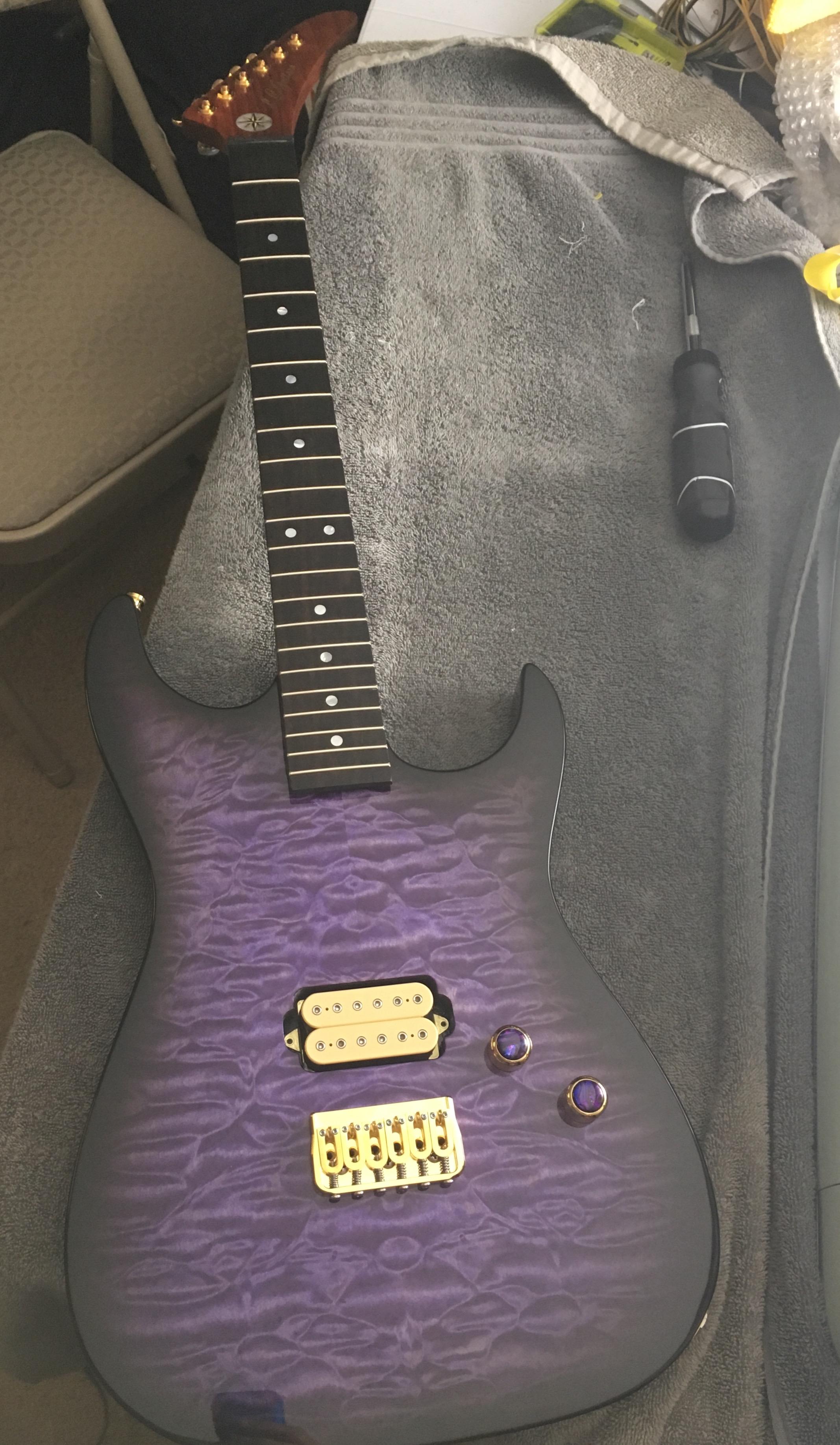

A big update! I got my body back from Tonar, all I can say is he did an amazing job, I couldn't be happier with it!

I got a bit impatient and didn't take any right out of the box photos and just started to work.

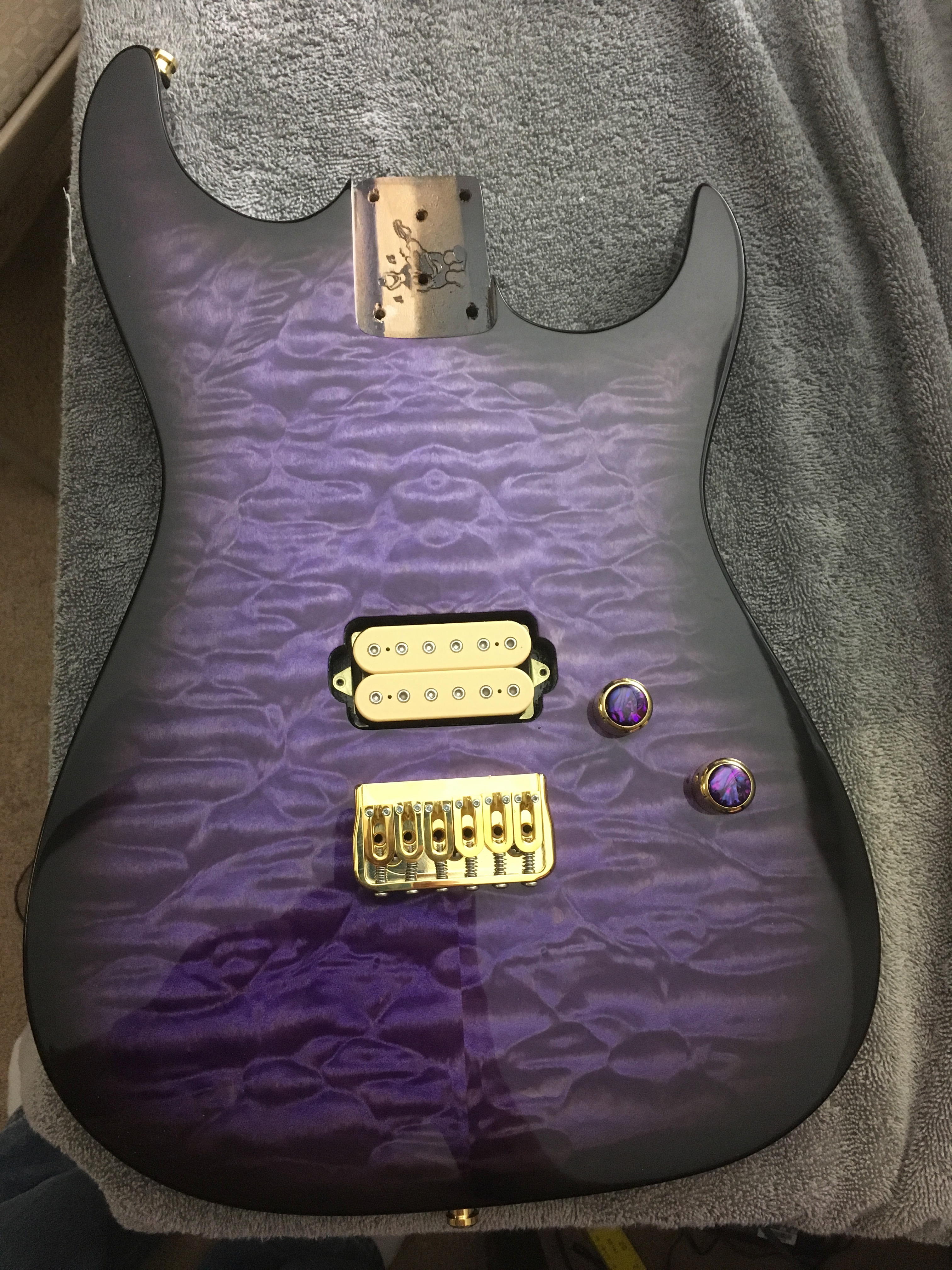

Hipshot bridge fit nice, I had to open up the two E string holes slightly to line up.

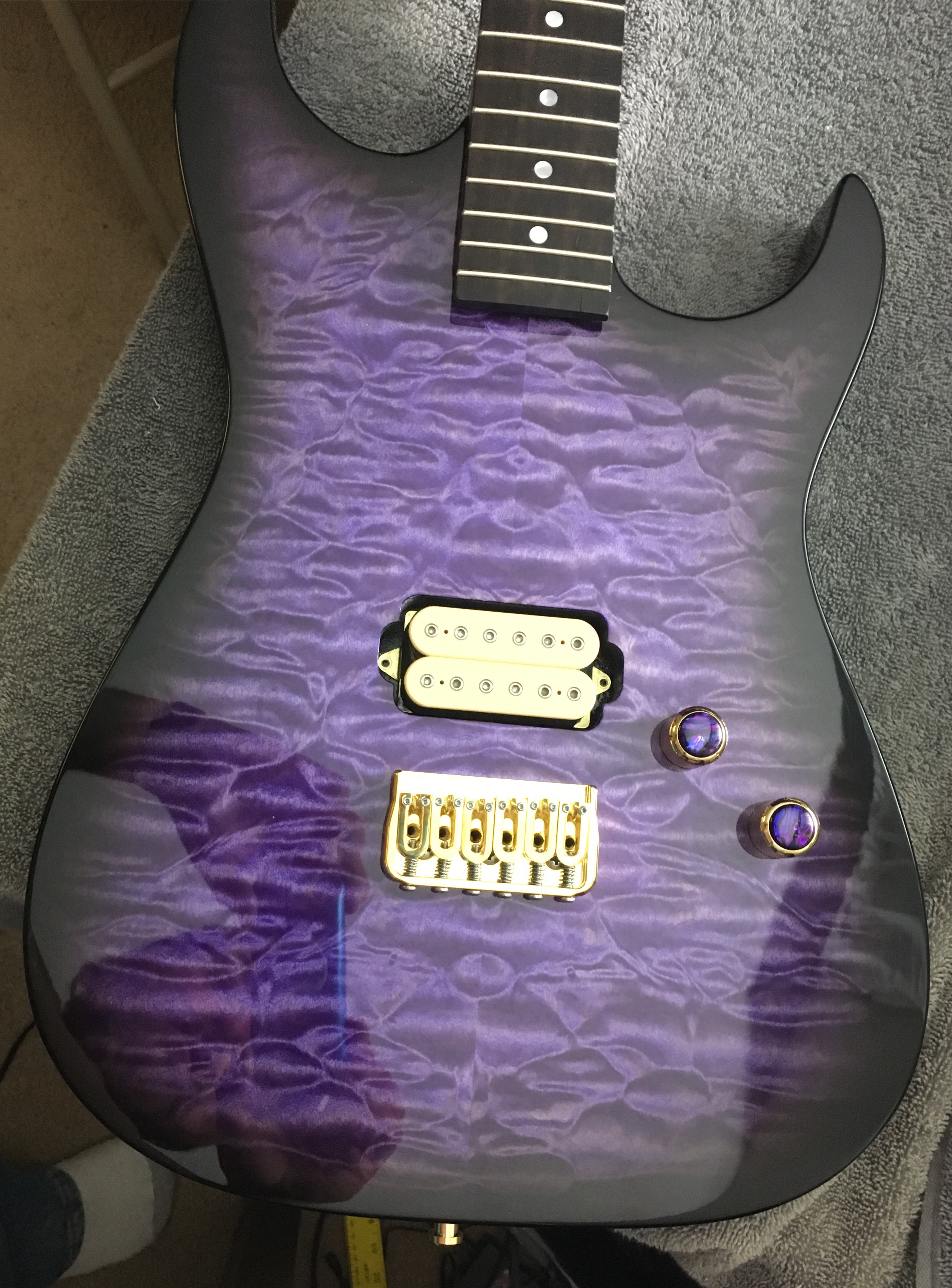

Dimarzio Fred pick-up in cream. Not sure if it will get wood mounted on a cream ring.Look at that shine!

Q-parts gold knobs with purple abalone. Padauk neck burnished to 2000 grit, ebony fingerboard.

Gold Gotoh locking 18:1 tuners, mother of pearl, ebony and holly compass rose inlay, gold leaf logo and about 6 coats of gloss nitrocellulose lacquer

I will try to take more pictures as I put Purple Phaze together



[DangerousR6]

Sweet... :headbang:

I liked it without the burst, but that's just me... :icon_thumright:



[rgand]

Looks really good. Nice job. Greg sure does do spectacular finishes.



[Sovereign_13]

Those knobs are perfect for that guitar.  It's kind of uncanny.



[Tonar8352]

I like it a lot!



[Cagey]

That is a beautiful piece of work! The knobs are a subtle but tasty touch, and the overall simplicity combined with the superior dressing make the whole thing a great realization of a fine design.



[TenThumbs]

That just oozes class. I love me some gold hardware...



[TBurst Std]

So does your hair match the guitar? Or at least the era?
LOL



[BigSteve22]

Beautiful instrument, those Q-Parts knobs really set things off!



[fdesalvo]

That is seshual.



[TonyFlyingSquirrel]

She makes me feel kinda funny, like when we used to climb the rope in gym class!!! :headbanging:
