Just ordered #18

willyk

Hero Member
Messages
1,278
Body..LPS flat top, walnut with maple pinstripe and padouk top. Neck..padouk/ebony std thin. It'sgonna have 2 'buckers and a whammy bar.

Pics in 4-6weeks  :sad:

NonsenseTele said:
Lefty or Righty??


Are you going to put dust on the case of this one, too?  :icon_biggrin:

Righty this time mate. It's not for me so, no dust required!.. :cool01:

Sounds good. I'm a fan of the LPS style. It's a personal thing - the shape and proportions just look and feel good to me.

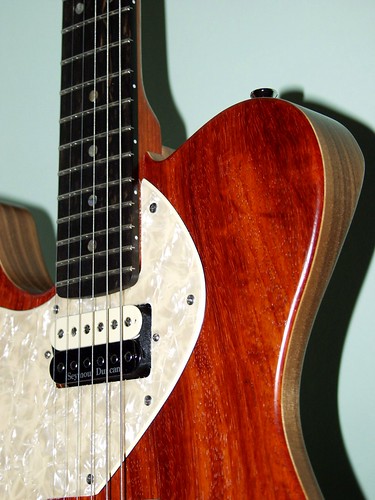

Here's one I put together earlier this year and is now my main gigging guitar. The neck is the 24.75" scale and I have since added an Earvana nut.

I made some modifications to the body:

Cut a cavity in the top horn for the pickup switch, then contoured the top for the switch (carved top body). Also cut a channel across the front pickup cavity for wiring.
Lowered the neck pocket to eliminate the gap between fretboard and guitar top and increase the neck angle slightly.
Routed a shallow area for the bridge. This proved unnecessary in the end.
Routed a rebate for the tremolo cover at the back, then made a cover plate from an oddments box (about $4).
Carved a tummy contour in the back.

The volume control feels like it wants to be a little further forward and down, but I'm getting used to it. I may move it later.

I also plan a subtle alteration to the lower cutaway to allow better access in there, but that won't be happening soon.

Look forward to seeing some pics.

willyk said:
Body..LPS flat top, walnut with maple pinstripe and padouk top. Neck..padouk/ebony std thin. It'sgonna have 2 'buckers and a whammy bar.

Pics in 4-6weeks  :sad:

You doing the finish yourself?  If so, what kinda finish?

glpmkr said:
Sounds good. I'm a fan of the LPS style. It's a personal thing - the shape and proportions just look and feel good to me.

Here's one I put together earlier this year and is now my main gigging guitar. The neck is the 24.75" scale and I have since added an Earvana nut.

I made some modifications to the body:

Cut a cavity in the top horn for the pickup switch, then contoured the top for the switch (carved top body). Also cut a channel across the front pickup cavity for wiring.
Lowered the neck pocket to eliminate the gap between fretboard and guitar top and increase the neck angle slightly.
Routed a shallow area for the bridge. This proved unnecessary in the end.
Routed a rebate for the tremolo cover at the back, then made a cover plate from an oddments box (about $4).
Carved a tummy contour in the back.

The volume control feels like it wants to be a little further forward and down, but I'm getting used to it. I may move it later.

I also plan a subtle alteration to the lower cutaway to allow better access in there, but that won't be happening soon.

Look forward to seeing some pics.

Holy shit!

Nice work. That LPS looks awesome!!!!

DocNrock said:
willyk said:
Body..LPS flat top, walnut with maple pinstripe and padouk top. Neck..padouk/ebony std thin. It'sgonna have 2 'buckers and a whammy bar.

Pics in 4-6weeks  :sad:

You doing the finish yourself?  If so, what kinda finish?

Danish oil, should end up looking like this..

Thanks.

I think I have breached etiquette here. My post should probably be in the finished instrument gallery.

My intention was to show off the guitar but also to show a few variations that are possible with this guitar style, and my experiences with them.

As an addition to that I found that the guitar balances beautifully with the strap button attached to the heel rather than the top horn. Just needs a hole in the neck plate - feels very secure.

There is also some very valuable information in this forum on neck angle and lowering the neck pocket if that's a consideration.
