920D Custom Les Paul Wiring Upgrade - LP-JP-T - Four Push/Pull Pots!

[fingolfen]

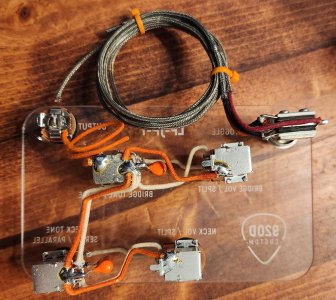

920D wiring upgrade kit for your Les Paul guitar. Four push pull pots which allow you to coil split both the neck and bridge pickups independently, run the pickups in series or parallel, as well as in / out of phase. I'd picked this up for a project, but ended up going in a different direction. No box, but the wiring harness is untouched. Instructions available on the 920D website.

Components

• 4 - Bourns Push/Pull 500K Pots
• 1 - .015µF Orange Drop Capacitor (Neck)
• 1 - .022µF Orange Drop Capacitor (Bridge)
• 1 - Pure Tone Output Jack
• 1 - Switchcraft 3-Way Straight Toggle
• 920D Custom Signature Wiring by Gavitt Wire

Switch Positions

• Bridge
• Bridge / Neck
• Neck

Original retail $287.99 - Yours for $189 (free shipping in the US)






Also on Reverb if you prefer that route: https://reverb.com/item/94338587-920d-custom-les-paul-wiring-upgrade-lp-jp-t-four-push-pull-pots
