Warmoth 7/8 Strat - Black Korina Chambered

[Stratolorian]

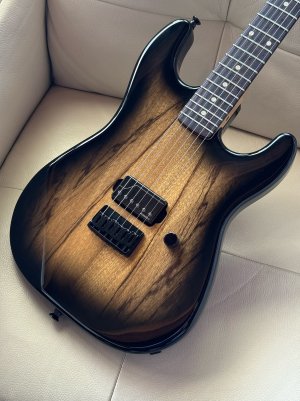

Finishing putting this together today. At one point had to send the body back to Warmoth for a refinish. Originally satin, now gloss. Looks incredible!


Body: 7/8 size Black Korina chambered with a Black to Clear Burst, contoured heel.

Neck: Warmoth Mustang/Jag Strat Neck - high gloss hand applied tru oil finish. (30 coats)

Pickup: Fishman Fluence Classic with 3 voices. Push pull knob switches between Voice 1 and 2,(PAF and Overwound/Hot Rod PAF) and a small dpdt switch on back cover activates Voice 3 single coil. Didn't want to drill in that beautiful top so I installed a tiny on/on switch in the back.

This is one of about 35 Warmoths I've either put together or have sitting around in a pile of parts ready to build.



[ragamuffin]

Looks great!



[supertruper1988]

Looks awesome \m/

What bridge drill did you order for that bridge?



[Stratolorian]

Looks awesome \m/

What bridge drill did you order for that bridge?

It's an American Strat Flat Mount rout and a Gotoh 510FX-6 hardtail bridge



[Stratolorian]

Also, for anyone interested on how I direct mounted this pickup, here's a pic. I screwed a humbucker baseplate to the bottom of the route and filed off a few millimeters from the top of the screw thread so I could leave the fishman mounting holes without drilling them out. Drilled a couple of small holes to accomodate the screws. Usually I order just a regular humbucker route and then you don't need that step.



[jjwu]

That's sleek. But how did you pair the mustang neck with the 7/8 strat body? Did they custom rout the bridge and pickup for the 24" scale?



[supertruper1988]

That's sleek. But how did you pair the mustang neck with the 7/8 strat body? Did they custom rout the bridge and pickup for the 24" scale?

That is a known compatibility. the 7/8 necks fit on a mustang or jag and a vice versa.



[rockandroller]

Beautiful!!!! I've been leaning towards another black Limba for a while now - how much does the completed guitar weigh?



[Stratolorian]

Beautiful!!!! I've been leaning towards another black Limba for a while now - how much does the completed guitar weigh?

Body alone 3.63lbs, the whole thing is 6lbs 9oz.



[Stratolorian]

That is a known compatibility. the 7/8 necks fit on a mustang or jag and a vice versa.

Correct. Any 24" scale Mustang/Jag neck will fit on the 7/8 strat and tele bodies perfectly.



[Hagwood]

Very nice ! I love the black burst going to the natural wood. Nice classy, clean look.
