Vegatrem install

[cjs0216]

So I had bought a vegatrem to install on a tele/strat hybrid body. I had it routed for an American strat bridge. However, when I went to install the bridge plate, the screws would not go straight in no matter what. It’s like the spacing on the bridge plate is too narrow, even though it’s supposed to fit an American Strat route. What can I do, if anything?



[Floyd_Argus]

So I had bought a vegatrem to install on a tele/strat hybrid body. I had it routed for an American strat bridge. However, when I went to install the bridge plate, the screws would not go straight in no matter what. It’s like the spacing on the bridge plate is too narrow, even though it’s supposed to fit an American Strat route. What can I do, if anything?

Are we talking a 2 point style tremolo or a 6 screw style tremolo? I used to have a 6 screw style VegaTrem tremolo on my prs se custom 22 and in that particular scenario, the holes aligned without issue.



[cjs0216]

Are we talking a 2 point style tremolo or a 6 screw style tremolo? I used to have a 6 screw style VegaTrem tremolo on my prs se custom 22 and in that particular scenario, the holes aligned without issue.

2 point style. Sorry. I had a picture, but I guess it’s not showing up lol



[Floyd_Argus]

2 point style. Sorry. I had a picture, but I guess it’s not showing up lol

the pic wasn't showing up for me earlier, but now it is. weird.



[rockandroller]

Left screw does not appear to be drilled perpendicular. With the screw backed out, is the hole in the wood centered in the hole in the bridge??



[cjs0216]

Left screw does not appear to be drilled perpendicular. With the screw backed out, is the hole in the wood centered in the hole in the bridge??

It is drilled perpendicular. That’s the bridge plate pulling it that way because the hole in the plate does not quite make it to the center of the hole in the body.



[Tretgeraet]

What studs did you use?

And I would also ask Vega-Trem for support in your case, since Warmoths routing is only designed to fit the American Standard Fender® Tremolo, while the Vega-Trem is designed to retrofit different 2-point style trems.



[stratamania]

Which screws are you using. Have you used the threaded adapters into the bushings?

See this video around 11:00 onward.



[AleForce1]

In my VegaTrem (2 point version) that I installed on my Velocity it came with 4 threaded adapters. Are you using the correct ones for the bridge studs that are installed into the body?



[cjs0216]

What studs did you use?

And I would also ask Vega-Trem for support in your case, since Warmoths routing is only designed to fit the American Standard Fender® Tremolo, while the Vega-Trem is designed to retrofit different 2-point style trems.

I did reach out a few days ago but I haven’t heard anything back yet. The studs are standard fender American, which the vegatrem is supposed to fit.



[cjs0216]

Which screws are you using. Have you used the threaded adapters into the bushings?

See this video around 11:00 onward.

The bushing were installed in the picture. It’s like the bridge plate screw spacing is slightly too narrow.



[cjs0216]

In my VegaTrem (2 point version) that I installed on my Velocity it came with 4 threaded adapters. Are you using the correct ones for the bridge studs that are installed into the body?

View attachment 68198

Yes. There’s a set for the Gotoh sized studs and American sized studs. Only the American sizes fits and we’re installed in the picture.



[Verne Bunsen]

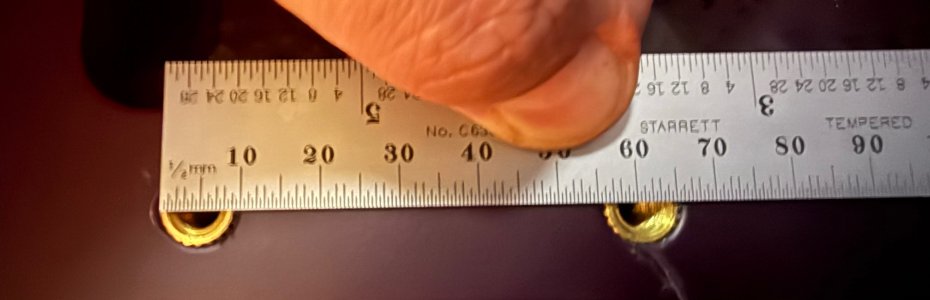

What is the center-to-center spacing of the bushings in your body?
