Might be a stupid question

twitchylizard

Junior Member
Messages
41
Im just starting the hole drilling process on my tele. Not very experienced with drilling and measuring for drilling. Does anyone have the screw depths for a 1 ply warmoth tele pickguard, and the depth for the two control plate screws? Do I just measure the length of the shafts, or should i put the screws thru the pickguard and control plate and measure the remaining shaft length? If its a stupid question, Im sorry for my inexperience.

You can drill a bit deeper than thr screw depth.  Some like to drill actual depth or a little shallow so the smallest point of the screw is biting.  But obviously, use a drill bit smaller than the threaded portion of the screw, and possibly smaller than the unthreaded portion.  And do not over tighten.


FWIW too, I've noticed on my flat top guitars with a maple 1/8 laminate, even just that little piece of maple, the screws seem to really bite more than on mahogany and ash I've used the same drill bit and screws in.

Thanks for the advice, my tele has a maple top so I will keep all of this in mind. I wish I wouldve done my first build with something less expensive but i guess i wasnt thinking right. So now with all the money ive put into it, I'm kinda nervous about everything in case i mess up. It will be an amazing piece when Im done with it though. I hope to post pictures when it is complete. The advice was much appreciated, Thank you!

You'll be fine. Just keep in mind when you're drilling screw holes that the screw is necessarily going to displace some wood. The harder the wood is, the less it wants to move or compress. When the threads bite in and the shaft follows, there has to be room for that displacement to occur. In hardwoods, you can't expect the shaft to displace much, if anything at all. The wood will fight it. Then the threads will expand the wood, so it needs someplace to go. Disregarding these phenomena will result in a screw that's far too tight, and you risk twisting the head off the screw and leaving the shaft in the hole laughing at you. Resolving that issue isn't any fun.

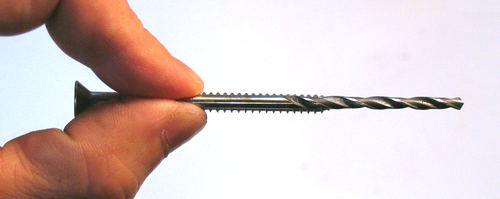

You can go by charts, which usually work out fairly well. They've been developed through long experience. Or, you can sorta sight it in by holding the screw behind the bit with a light source behind it.


It's sloppy, but works in a pinch. If you can't see the threads, the bit's too big. If you can see the shaft, the bit's too small.

Finally, it's critical in hardwoods that you lubricate the screw. Some kind of wax - beeswax is best - needs to be applied to the threads. You can also use paraffin, candles, crayons, etc. (not soap). Just don't drive the thing in dry. You're liable to have to invent new cuss words.


I have heard about the lubrication of the threads and I will definitely do that. Ive seen some people use chap stick. And I never thought about the bit and screw thing. It makes a lot of sense and I will definitely use that. Thank You

You could practice on some scrap wood (eg Maple flooring sample). Also the right size
screw driver tip for the screw.
