Hello All.
Here I have my first meadowhawk build. Quite excited about this. I was going for a super tele/PRS style guitar. Direct mount pickups. Guitar will feature 3-way switching with a push-pull tone pot to allow a solid 6 different positions. I couldn't decide on which pickups to get but I finally settled on the Fralin Pure PAFs. Those should be coming in the the next week or so.
My goal is to start building this guitar once the pickups come in. I really like the satin olive green with the mahogany body. I went with the off menu clean line and i'm very pleased with how it turned out. The Warmoth finishes are simply fantastic.

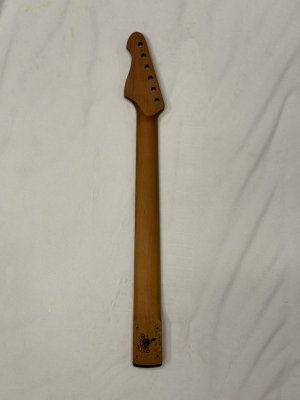

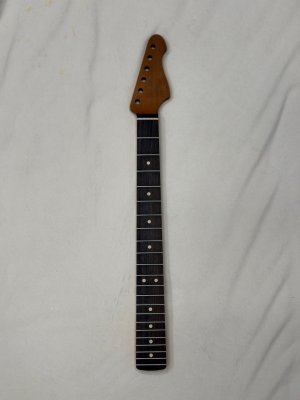

Went with the warhead neck with roasted maple shaft and Indian rosewood for the fretboard. Again, the quality is incredible. The roasted maple feels very smooth.

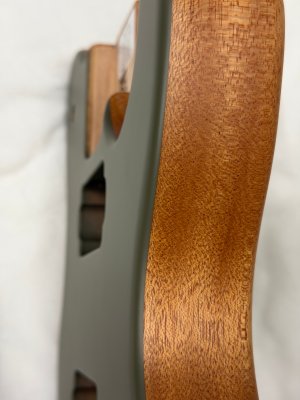

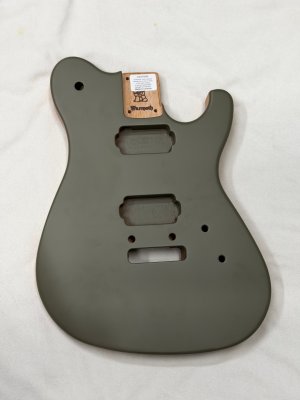

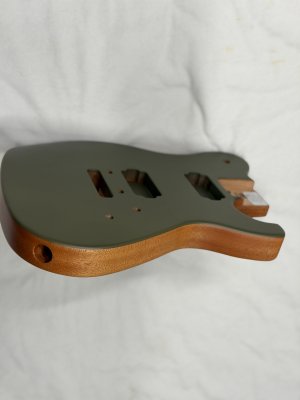

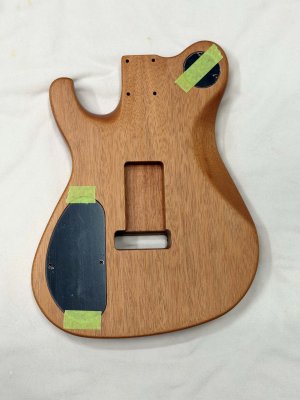

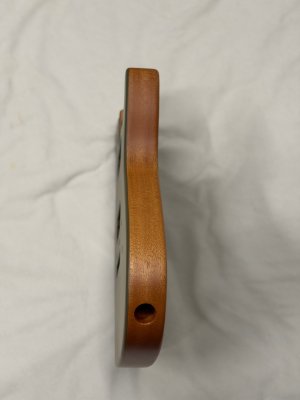

Meadowhawk Guitar Body
Here I have my first meadowhawk build. Quite excited about this. I was going for a super tele/PRS style guitar. Direct mount pickups. Guitar will feature 3-way switching with a push-pull tone pot to allow a solid 6 different positions. I couldn't decide on which pickups to get but I finally settled on the Fralin Pure PAFs. Those should be coming in the the next week or so.
My goal is to start building this guitar once the pickups come in. I really like the satin olive green with the mahogany body. I went with the off menu clean line and i'm very pleased with how it turned out. The Warmoth finishes are simply fantastic.
Went with the warhead neck with roasted maple shaft and Indian rosewood for the fretboard. Again, the quality is incredible. The roasted maple feels very smooth.
Meadowhawk Guitar Body
- Construction: Solid
- Core Wood: Mahogany
- Lam Top Wood: Alder
- Right / Left Handed: Right-Handed
- Control Cavity: Rear Rout
- Neck Pickup Rout: Humbucker (Wood Mount)
- 24 Fret Reposition: No
- Middle Pickup Rout: None
- Bridge Pickup Rout: Humbucker (Wood Mount)
- Controls: Volume 1, Volume 2, Upper Toggle Hole
- Jack Rout: 7/8" (22mm) Side Jack Hole
- Bridge Rout Type: Tremolo
- Bridge Rout: Gotoh 510 Tremolo
- Mounting Holes: Standard 4-Bolt
- Neck Pocket Shape: Strat®
- Body Contours: Forearm Contour, Tummy Cut, Custom Contoured Heel
- Binding and Edge Decorations: None
- Battery Box: None
- Paint Category: Solid
- Top Color: Olive Drab
- Back Color: **CLEAR BACK WITH CLEAN LINE**
- Satin or Gloss: Satin
- Construction: Modern
- Shaft Wood: Roasted Maple
- Fretboard Wood: Indian Rosewood (Dark)
- Nut Width: 1-11/16" (43mm) - Modern Medium
- Right / Left Handed: Right-Handed
- Neck Back Profile: Standard Thin
- Fretboard Radius: 12" - 16" Compound
- Number of Frets: 22
- Scallops: None
- Binding: None
- Fret Size & Material: SS6150 - Wide & Tall (Stainless)
- Tuner Hole Size: Planet Waves (13/32")
- Inlay Shape: Standard Dots
- Inlay Material: Cream
- Side Dots: White Side Dots
- String Nut: Standard Nut - GraphTech White TUSQ XL
- Mounting Holes: Standard 4-Bolt
- Neck Heel Shape: Strat® Shape
- Finish: None
