The Hipshot Hardtail bridge & rout option now at Warmoth!

[aarontunes]

The Hipshot Hardtail bridge and the rout are now available at Warmoth!

You should see the rout available in the builders now. The visual part is not done yet so no image will show, but you can order it. I for one am glad to see this finally available!



[Rick]

Awesome!



[bagman67]

Wooohooo!



[triple jim]

Good. I would have preferred that option to the always slightly crooked Fender hardtail bridge I put on my last Warmoth body.



[4406Pack]

Yes it is what is coming on my bucketcaster body



[Spud]

Yes it is what is coming on my bucketcaster body

Can't wait to check it out!



[stratamania]

That is a good move, as it seems to be a popular choice folks were using / asking about.



[alexreinhold]

Two builds too late for me but yes, very good call!



[Waraxe]

I have one of those on my 2009 hardtail strat body. I think it can be used on the American standard rout?

I can't remember if I did anything different when I ordered it.

More options are a good thing!



[J-Bones]

I have one of those on my 2009 hardtail strat body. I think it can be used on the American standard rout?

I can't remember if I did anything different when I ordered it.

More options are a good thing!

Nope, it has its own rout.



[JohnnyHardtail]

I welcome another hardtail option. I'm generally happy with the Gotoh 101, but I'd like to give the hipshot bridge a try. I was also considering babaicz flat mount bridge, so I'll have a slight dilemma next time I put a Warmoth build together.



[Waraxe]

Nope, it has its own rout.

I ordered mine with a vintage hardtail rout. It was 1.78 vs 1.754.
The outside 2 screw holes were something like .013" different. I remember stressing about this, as I REALLY wanted the hipshot bridge.

even the string holes were ok. I think they were bigger overall than the modern ones?


Still glad to see it as a stand alone option.



[J-Bones]

I ordered mine with a vintage hardtail rout. It was 1.78 vs 1.754.
The outside 2 screw holes were something like .013" different. I remember stressing about this, as I REALLY wanted the hipshot bridge.

even the string holes were ok. I think they were bigger overall than the modern ones?


Still glad to see it as a stand alone option.

I'm glad it worked, we just offer the unique rout as Hipshot definitely specs it differently. It's sort of a hybrid, with closer-to-Vintage mounting screw spacing and closer-to-American Standard string holes.

String hole spacing:
- Hipshot 0.416"
- Vintage Flat Mount 0.446"
- Am Standard 0.413"

Mounting screw hole spacing:
- Hipshot 0.875"
- Vintage Flat Mount 0.890"
- Am Standard 0.827"



[Rick]

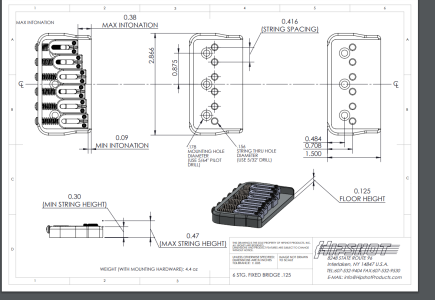

Some diagrams.



[Rick]



[Waraxe]

View attachment 58782

Do you have a layout for the vintage strat hardtail?

I seriously think that is what I did 13 years ago, though I am not 100% sure.



[4406Pack]

6 String Fixed Guitar Bridge

Description The Hipshot Fixed Bridge is the ultimate marriage of performance, beauty and ergonomics. Each bridge is hand polished for a smooth, comfortable feel under your palm. The stainless steel saddles have a crisp string relief edge, eliminating dull tones. The side walls lock your saddles...

hipshotproducts.com

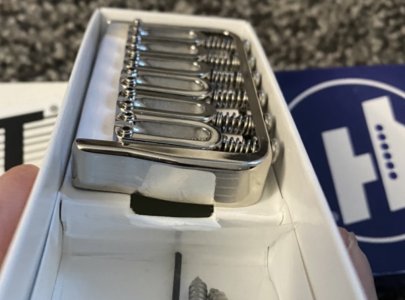

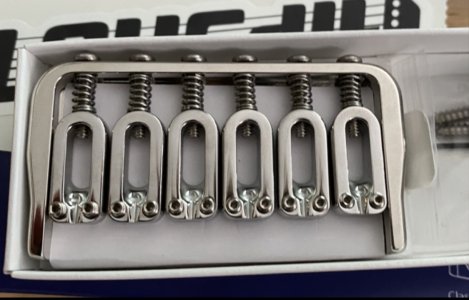

They are extremely beautiful i orderd the .175 floor and nickel plate



[stratamania]

More on string spacing dimensions which are not obviously published for these bridges.

The Hipshot Fixed Bridge has a string to string spacing of .416" (10.6mm). That works out to an E-e spacing of 2.080" (52.8mm), which is compatible with 2 1/16" (narrow spaced) Fenders.
https://hipshot.zendesk.com/hc/en-u...What-is-the-string-spacing-of-a-Fixed-Bridge-

@The Aaron it might be worth having similar info on the website.



[markuus99]

This is huge! Love it.



[Steve_Karl]

Great to hear

However it's not yet showing in the bridge route page
