Taking on A Bartolini Preamp Thingie

[ninjachef]

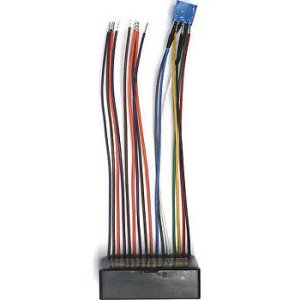

So I'm new to this whole guitar crafting/wiring/fennegling thing.  I am an apprentice guitar tech, no problems, but my sensei has been out for the last month (I've been left to my own devices  :-\)and I have to put in some crazy doohickey tomorrow.  I have literally wired 5 guitars in my entire life at this point.  This thing has me psyched out... LOL.  I am just curious if there is some huge protocol that I simply have no idea about... If not, I'm just going for it dudes. :bass:



[bagman67]

Here's Bartolini's host of diagrams.


http://www.bartolini.net/electronics-wiring-diagrams/



[ninjachef]

:icon_thumright: :headbang: :blob7: :guitaristgif: :hello2:

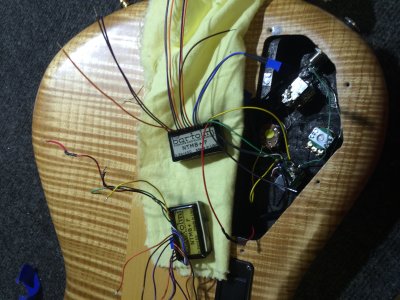

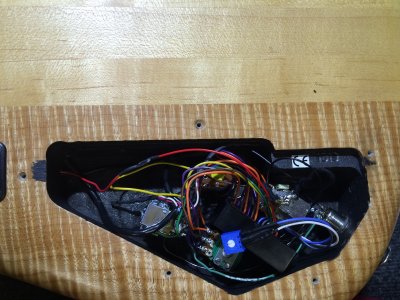

Victory!!!



[Re-Pete]

:icon_thumright: :headbang: :blob7: :guitaristgif: :hello2:

Victory!!!

Well done. I have long looked at Bartolini's but in guitars not basses, which they seem to market to. Much mucking around with the wiring?
