My next strat build in progress

BrotherJack

Junior Member
Messages
80

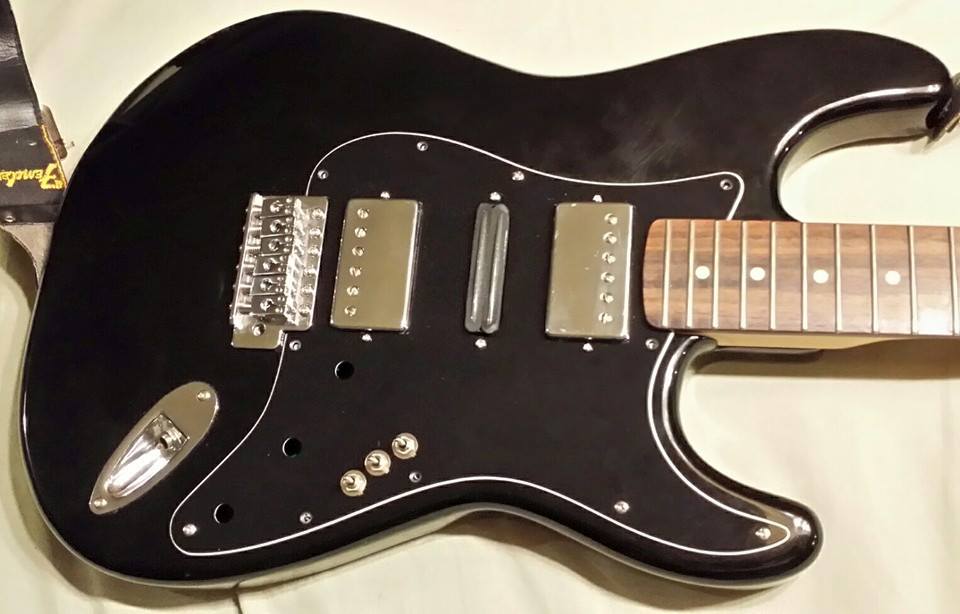

Here is a pic of my latest strat build in progress.  After a couple of other strat builds, I've finally concluded that I dislike yee olde single coil pickups for almost all uses, except in the neck for soft/acoustic-ish tones, and I can coil-split a humbucker to get that, so - for me from now on, all humbuckers.    Wiring is going to be all switches (on/off/100k resistor per-pickup, and a master on/off/coils split), no pots, and the final build will have a custom Warmoth pickguard that will lack the middle single-coil slot seen here, and other than humbucker holes it will be blank, so I can drill my own control holes and avoid the open pot holes that this pickguard sports.  The neck is also going to be roasted maple angled headstock Warmoth with a 3 x 3, vaguely PRS-ish in shape, and 24.75 instead of 25.5, and lacking in all inlays.

Anyway, more later as the build progresses.  For now, here's where it's at with the temp pickguard and neck on it:

Comments, suggestions, questions, etc - please.  :)


I like the look of this strat, but what pickups did you go for in the end ?

I guess you are using three separate on/off switches for each pickup versus a selector, so for coil tapping I'm assuming you will use a push pull pot ?

The temp setup I'm playing with here, is different than what the final build will be, so there are two answers:

Current:  dual Lotmusic humbuckers (remarkably good for the $14 a pair - a solid upgrade from most factory pickups), and a unkonwn brand 'hot rails' with a Alnico magnet in the middle.
No knobs - I hate knobs.    The switch-per-pickup in the current is a 3-way, so position 1 = 'on', position 2 = 'off', and position 3 = 'add a 100k resistor to ground (ie: a warm tone)'.    This thread has more info on the idea of it:  http://unofficialwarmoth.com/index.php?topic=24839.0 - this one isn't 100% like that, but will be the same ideas with a slightly different layout.
A Cheap squier neck so I have something to play with while I wait on my custom ordered Warmoth parts to get built and shipped.
A cheap pickguard that happened to be HSH (not my preferred setup).

Final will be:  A pair of Giovanni GVH-1's for pickups, setup exactly like the wiring diagram in the link I posted above - 3 way Les Paul style switch, and a master on/off/coilsplit switch and a master dark/wide open/warm tone switch.  In a custom Warmoth pickguard without controls (I will drill my own), with a Warmoth roasted maple neck with a custom-cut (by me) PRS-ish 3x3 headstock.

Cheers!

I feel your pain...I have a great Godin that is H-S-H, but instead of a pickguard, it's top-route...so I've been going back and forth between trying to...acquiesce and find a H-S-H configuration I get get on with, or just commit to a H-H with a big empty-tooth space where the middle pickup would/should be, or try to fashion a hackneyed single-pickup cover for it...sign...I'll figure it out one of these days...

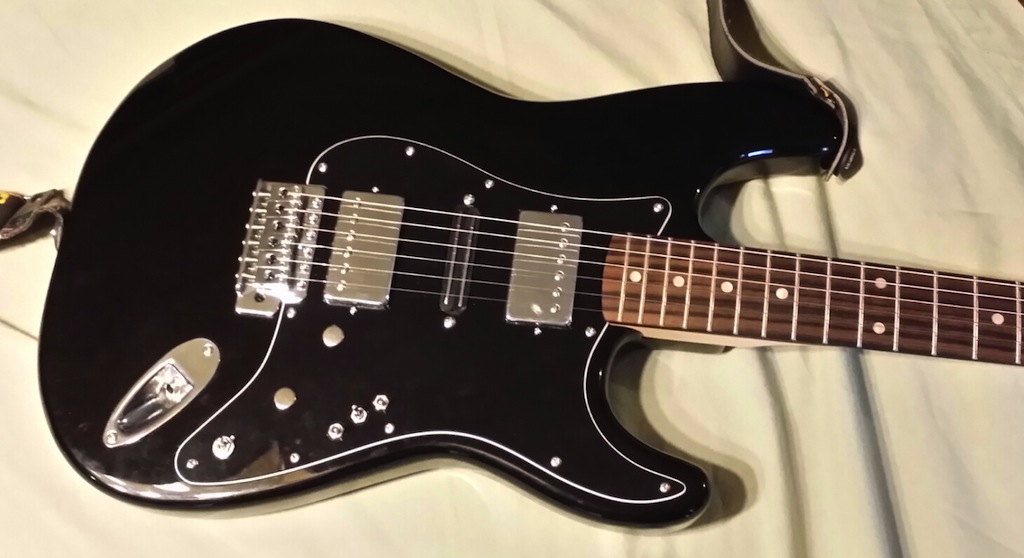

Here she be, all wired up and ready to rock (until I take it apart and rebuild it again in a couple three weeks/whenever the Warmoth neck and pickguard and Giovanni pickups all get here).  I was at lowes picking up some black hole plugs to cover the volume/tone pot holes (Hillman Group makes perfect ones, for anyone who's ever interested), and had The Wife(tm) with me.  She noticed they also sold chrome ones, and insisted I drop the $2 to grab a couple of them too, so I did.  Tried both when we got home, and we both agreed, the chrome hole plugs were much hotter looking than the plain black ones.

I kind of feel like there's too many options for pickups in this setup - on/off/coil-tap per-pickup, plus the tone switch - that's 27 possible combo's with just the pickup switches, plus 3 variations of any of the above with the tone switch added to the mix, is what, 81 possible settings?  Oy, that's ridiculous!  Flexible, but ridiculous!  I'm glad the final incarnation (well, probably the final incarnation, if the urge to tinker on it doesn't overpower me again), there'll only be two pickups.

Anyway, #thisthreadisuselesswithoutpics



Interesting..... I like the all switch concept, but the complexity of the switching seems like it would be confusing, at least to me. Even with just two pickups, there are a lot of choices to make. Although I do have to say, I like the look. No pots, interesting....

I built a couple Strats with 3 switches vs. a blade switch, and that was my experience. Too much messing around. Not necessarily confusing, but it's just harder to get from some settings to others and you sometimes don't have time to goof around with complex or multiple controls while you're playing. Plus, the additional sounds I got out of the deal weren't really useful (to me).

Yeah, as my idea of what I want for the final build evolves, I am thinking more and more I want to simplify this a whole bunch.  Possibly even going to a minor variation of the wiring scheme I've been playing with in my Ibanez (http://unofficialwarmoth.com/index.php?topic=24902.0), though I would probably fork out the $15 for a proper 5 way super-switch and doing it so it's as follows:

Pos1: Guitar Off (hot to ground)
Pos2: Bridge w/ 200kohm resistor to ground
Pos3: Bridge + Neck w/ 200kohm resistor to ground
Pos4: Neck w/ 200kohm resistor to ground
Pos5: Neck with coil split and no resistor

And let that be that - no knobs at all, just a single 5 way switch, and would get every sound I really care about, and be able to turn off with  The resistor on the humbucking positions would mellow/warm the tone a bit (and reduce volume slightly), which would let the un-resisted single coil when in split coil config not sound like half-volume to the humbucker positions.

I dunno, we'll see.  I'm still changing my mind about once a week at this point, LOL.  :)

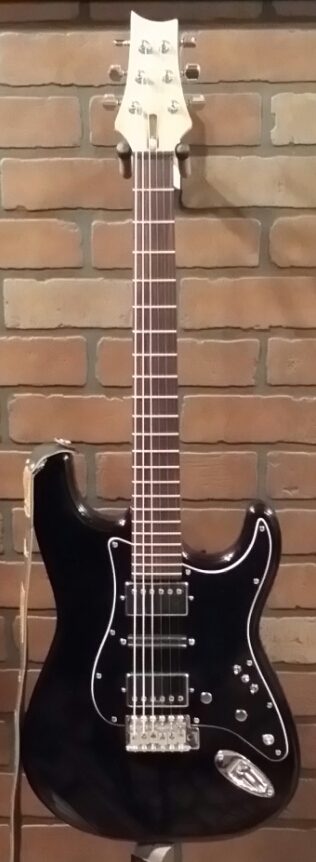

w00t w00t - them folks at Warmoth are A W E S O M E.  Several weeks ahead of schedule, the roasted maple neck showed up in the mail on Thursday.    It killed me to have to wait till today to work on it, but finally got a couple hours tonight to git er dun.  I cut the headstock with a chop-saw and a drum sander attachment for my drill press (yes, I am totally that redneck), but you'd never know it if I hadn't told you - I took good care and worked it down to 600 grit sandpaper, and the parts I cut are so smooth and even you can't tell where the Warmoth cut ends and mine begins (the shadows in the pic make the rounded corners look a little sharp, but thats' just the pic, i can assure, they are smooth!).  It looks like a PRS, but it's just a look - the PRS look inspired me, obviously, but I free-handed the shape to be more to my liking.  If you look close it's less pointy in all directions than a PRS, narrower and more rounded by the neck, the points on the top not as sharp or pronounced.  It's also shorter than a PRS by almost an inch, and narrower at the base by (I guesstimate) about 1/2 an inch.  Anyway - I am happy as a clam with how it came out.  :)

Now that I see it all together, I think there is too much chrome on the pickguard, so I'm really happy I got one from Warmoth in the same order with no controls cut in it, just the neck and bridge humbuckers.    I'll try a few looks and see what I like the most, but I'm back to thinking I may drop blackout/EMG type pickups in it, a minimalist switch-only control set, paint the body matte black, and leave the bridge, tuners, and output jack as the only chrome.  I dunno, I'll figure that out as I go (that's what makes this kind of thing fun, right?).  I'm also 'this close' to giving up on that crappy factory bridge and dropping a Kahler on it (all you Kahler haters can yap all you want, but I have never owned a guitar with more sustain -- a near full pound of steel in the bridge is near miraculous for making the strings vibrate until you get ready to stop them).

Oh, and to make it special to me, these are the 18:1 Gotoh tuners that I inherited from my Dad when he died.  He'd used them on a 6 string banjo he'd owned for years (I inherited that too).  I was (am) never going to play that banjo, but with these tuners on the guitar, I feel just a little bit like I'm playing something he passed on to me.  :)

Anyway, I know, I know, #thisthreadisworthlesswithoutpics - it's kind of a crappy cell phone pic, but you get the idea.  I'll post more up when I get it "done".



Looks good to me. Might be too late for a Kahler, though. Be worth looking into - they make a number of different models.

Never too late for anything, really. But, there's a limit on some modifications where you run into cost vs. practicality and you're sorta forced to get a more accommodating body to work with.

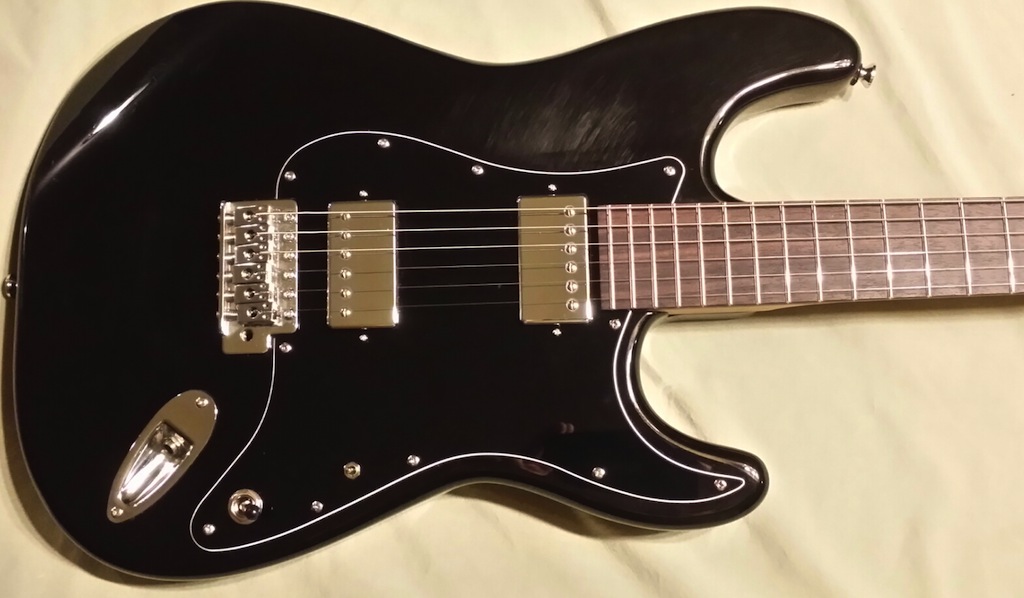

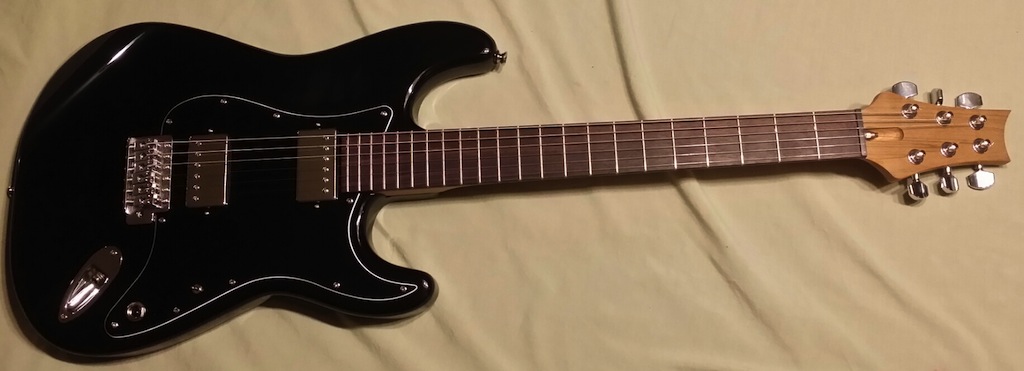

OK, still a few bits of work left (will have to pull the tuners and put my custom logo and a coat of lacquer on the front face of the headstock), but 99.9% there, as of tonight.  I think if a Stratocaster and a Les Paul had a baby, it would look a hell of a lot like this!

New specs since last time:

New Giovanni GVH-1 pickups (wow, these pretty much live up to the hype - if $5 made-in-china pickups rate a 0, and Seymour Duncan's rate a 10, these are about a 9.5).

Controls - no knobs, baby, clean and simple!  There is a Les Paul 3-way where the Tone-2 knob would be on a normal strat and it does  bridge, bridge+neck, neck switching.  The only other control is a mini 3-way where the lower screw hole on a strat 5-way would be, and that one does Off, On, and On w/ Coils Split.  Gets me 7 possible positions (3 humbucking, 3 split coil, and 1 off), which is probably 5 more than I would ever really need, but oh well.  I was going to add a 250kohm resistor between hot and ground to simulate about what having a couple of volume/tone pots in the circuit would do, but I can add that easy later in the football jack hole (so I don't have to pull the pick guard again), and I thought/think I'll play it like this for a while and see if a little extra-hot is a bad thing or not.

I know, I know, #thisthreadisworthlesswithoutpics

Gimmie your opinions.  I can take it. :)





Straight to the jack, with a few options. Looks nice.

If you decide that it's a little too brash, you can always add a low pass filter cap right there at the jack plate, along with the 250k resistor you're thinking about. A really small value, in the neighborhood of .001uf or smaller, would just shave off the very top. Experiment, see what you like, if you don't like it, it's easy to remove.
