Large Rear Route

clbraddock

New member
Messages
12

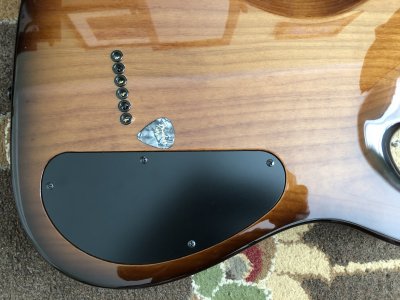

I need a nonstandard rear route for a Tele body. See attached pic for example of what I want. Does Warmoth have pictures of their rear route options anywhere? By email they said to request a "bean" route, but I'd like to see what that would look like. Thanks!


Attachments

  • rear route.jpg
    rear route.jpg
    2.6 MB · Views: 95

rlefty

Active member
Messages
62

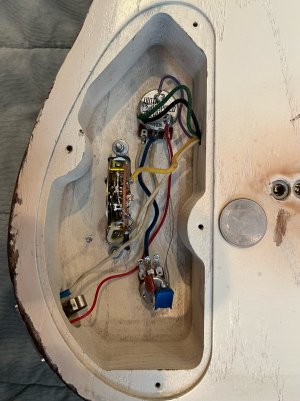

Too lazy to take the plate off. This is a rear-routed tele.


Attachments

  • rr1.jpg
    2.7 MB · Views: 81

ValeBliz

Senior member
Messages
117
The rear route on the tele body is the same rear route as other warmoth rear routed bodies afaik


clbraddock

New member
Messages
12
Thanks! Sounds like I don’t need to request anything special then. I’ll select “rear route” on the body order form.


J-Bones

Active member
Messages
34
Note: If you select LP controls on a rear rout Tele body you'll get a smaller, diamond-shape cavity. Just be sure to select Tele or Strat control layout and you'll get the kidney bean cavity--same shape used on rear rout Strats/Soloist/Velocity/VIP/etc. Some of the bodies have their own RR shape, but they're usually the more esoteric designs, such as the Musiclander, WGD, Diamondback, and V shapes. Mildly interesting: the Jazzmaster and J Bass share the same rear rout shape.


clbraddock

New member
Messages
12
Couple more questions:

1. Are the dimensions of the standard rear route available anywhere? Specifically the diameter? Trying to figure out if an ilitch will fit and if so, what size (17.5” vs 19”)

2. Is it possible and would it make sense to have both a front and rear route on a tele? It sounds like some people have difficulties fitting pots and switches through the rear route. I’m planning on having a control plate either way for asthetics. Can I just get both routes together?
