Does this work?

[Heft]

Hey,
I just need an audible of my schematic before I order parts.

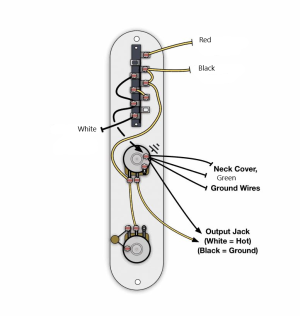

This is Seymour Duncan wiring humbucker into a 4 way oak grisby switch.
Thanks,



[stratamania]

What are you asking?

I am not sure what you just need an audible is asking...



[Heft]

I 'm just wondering if this gives 4 sounds with one humbucker.



[stratamania]

It looks like potentially it could give four sounds in no particular order, presumably humbucker series, humbucker parallel, north coil, south coil.

Do you have the rest of the diagram or where it was sourced from?

Possibly not a bad wiring scheme to use with a P-Rails as you could have presumably humbucker series, humbucker parallel, rail, P90.



[Heft]

Its something of my own design, I'm using it with a 59/custom Hybrid PAF, Should give some neat sounds.

This is what I modified to get the final image, https://www.fralinpickups.com/2017/03/14/4-way-switching-tele/



[stratamania]

Yes it looks like the modification of the Fralin drawing for use with a Humbucker would work.

It really would be helpful if the link to the original Fralin idea was posted along with the modified version you adapted for an SD humbucker and ask for confirmation if it would work.

Remember when asking for help the more information you provide and the clearer the question saves people time trying to figure out what is being asked etc.



[Heft]

Thank you, for both the confirmation related to the diagram, and the advice.



[stratamania]

Thanks... :icon_thumright:



[Rick]

An audible is a term from American Football.  It's instructions given at the very last moment.



[stratamania]

An audible is a term from American Football.  It's instructions given at the very last moment.

Thanks Rick... :icon_thumright:



[aarontunes]

An audible is a term from American Football.  It's instructions given at the very last moment.

Exactly. "Calling an audible" is an American football term which means "we had an agreed-upon plan, but now that I've seen what our opponent is doing, I've determined that it is no longer going to work, so I'm announcing a new plan at the last moment."
