Wiring digram fopr this Strat Harness

arealken

Senior Member
Messages
226

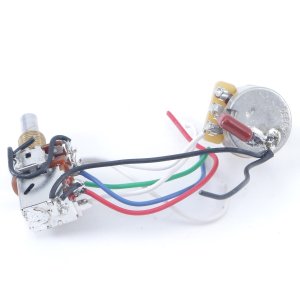

I guess if anyone would know, it would be someone here, but I'd like to get this Harness wired up, but I haven't the foggiest which wires go where, can someone hazard a guess or maybe tell me how to go about finding out? Its a Harness from Jackson. I would use it in a two Humbucker configuration,. I think it has a push pull pot for coil tapping?


Attachments

  • rer6agwye5jmuod7tqto.jpg
    72.6 KB · Views: 211
It is hard to see what is connected where in the photo.  Can you take another shot that better shows the lugs on the push/pull pot?

Honestly, I'd probably just unsolder everything and start from scratch.  Otherwise, you'll have to splice into each of the existing wires, which is probably more work.
