Wiring assistance please

TBurst Std

Hero Member
Messages
3,312
Would like some wiring assistance please as I can;t wrap my head around this right now.

Going to put in some new pups into a Godin Flat Five X. The pups I am looking to replace are the magnetics (not the piezo).

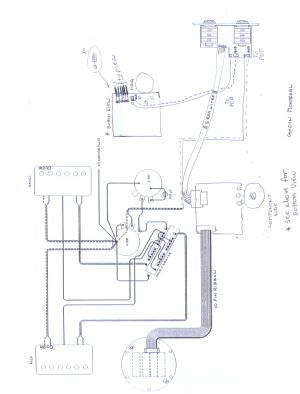

I have attached the wiring diagram for the Flat Five X.
Currently it has 2 humbuckers and the positions are:
1. Neck HB
2. Neck SC
3. Neck and Bridge HB
4. Bridge SC
5. Bridge HB

What I would like is the following:
1. Neck HB
2. Neck SC
3. Neck and Bridge SC
4. Bridge SC
5. Bridge HB

Also if possible, I would prefer:
Position 2 to use the outer coil of the pup
Position 2 to use the inner coils of the pups
Position 4 to use the outer coil of the pup

If that is not possible, then I want to use the inner coils in positions 2, 3, 4

Thank you


Attachments

  • switch.jpg
    253.1 KB · Views: 454

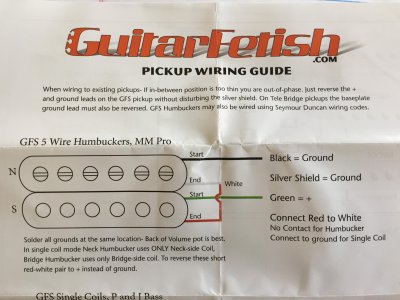

Here is the wiring diagram for the pups

I'd like to tackle this tomorrow.



Attachments

  • pups.jpg
    608.1 KB · Views: 337
I'll give you some help...
step 1) wire your white/red together on each pickup, both blacks to ground
step 2) 1 pole (common) would go to live, and on positions 1,2,3 you put the green from the bridge humbucker
step 3) 1 pole (common) to live and put the green from the neck humbucker on positions 3,4,5
step 4) 1 pole (common) would go to ground.  then put the red/white from bridge on positions 2 and 3
step 5) 1 pole (common) would go to ground.  then put the red/white from neck on positions 3 and 4
