Modded Dimarzio HxS (for Area Neck) - Most satisfying switching yet

[fdesalvo]

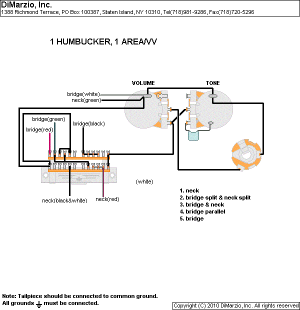

For those of you with an HxS config utilizing a Dimarzio Area neck pickup, I cannot recommend this wiring scheme enough.  arty07:

Edit: Uses the EP1112 switch.



[stratamania]

It looks like a good scheme to use.

However, this will not work with a normal single coil in case anyone stumbles across it and thinks that it might. It will work with noiseless type "single coils" with four wires or single coil sized humbuckers.



[fdesalvo]

Yes, the Areas are stacked coil buckers.
