Help with DiMarzio EP1111 Wiring?

Timmsie95

Hero Member
Messages
890
Hey guys!
So I got my DiMarzio switch in the mail today, and I've sorta wrapped my head around how it's able to do such complex switching.

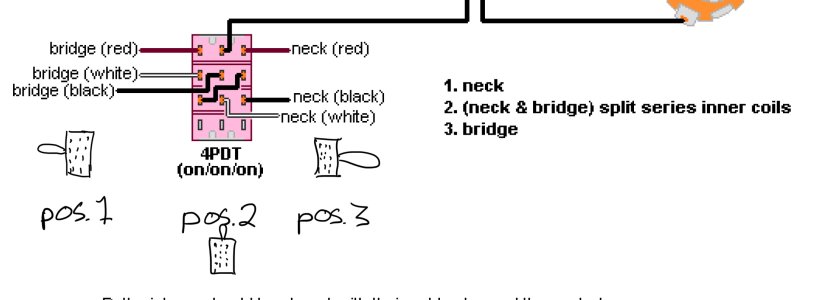

However, I'm trying to figure out which way the switch is to be oriented (based off of the diagram that I have attached).

I sketched in what I was thinking it should be, but I'm not entirely sure. I know I will find out when I start wiring, but I'm just trying to be prepared, haha.

So from this diagram, I'm thinking position 1 is with the switch pushed towards the left, and position 3 is with it pushed towards the right?
So you would rotate it 90 degrees clockwise from this, when putting it in the guitar, correct?

I know it probably sounds stupid, but I can't seem to decipher it.

Thanks in advance!  :rock-on:


Attachments

  • 2h1v1t_1ep1111series_2.jpg
    301.6 KB · Views: 1,899
I believe this is what you're looking for.

https://d2emr0qhzqfj88.cloudfront.net/s3fs-public/diagrams/2h1v1t_1ep1111series.pdf

Looks pretty much the same though, but the link is directly from Dimarzio's site.

TonyFlyingSquirrel said:
I believe this is what you're looking for.

https://d2emr0qhzqfj88.cloudfront.net/s3fs-public/diagrams/2h1v1t_1ep1111series.pdf

Looks pretty much the same though, but the link is directly from Dimarzio's site.

Yeah I know how to wire it, I'm just trying to figure out what direction the switch tip would be facing for "position 1" and so forth. I assume position 1 (neck) is with the switch pushed left, in this case?

It's not sideways. Look at the diagram on the DiMarzio site.

Position 3 is Bridge at the bottom of the diagram but the terminal poles for the bridge are at the top. This means the lever goes in the opposite direction.

Check it with a multimeter or similar.
