CyberCaster - JM Vortex fixie lefty HH

cy83r

New member
Messages
18
There were a few hardware constraints being a lefty in Australia, so I'm putting together this dream hybrid (/monstrosity):

Warmoth
  Solid roasted alder jazzmaster
    no lam top
    Lefty
    Top rout w 3xhumbucker routs (middle to be empty)
    Hardtail Am Std Strat flat mount
    3xbody contours
    Battery box
    No finish
  Vortex modern tiltback neck
    Roasted maple
    Random dark indian fretboard
    1 3/4
    Lefty
    White tusq xl nut
    59 roundback
    10-16 compound
    22x SS6115
    25/64" tuner holes
    Standard cream dots and white side dots
    Standard 4 bolt
    No finish
  Silver pearl pickguard
    Neck and bridge humbucker
    Volume, tone, input jack, upper & lower toggles
  Battery box
  Chrome neck plate and screws for contoured heel

Non warmoth
  Fishman fluence classic 3 voice covered humbuckers, steel finish
  Gotoh SG301 non locking tuners with ebony buttons, Chrome
  Schaller s-locks
  Elixir nanoweb 9-42 strings
  Babicz original FCH bridge, chrome
  Goldo dome speed knobs
  Switchcraft right angle mini toggle W chrome tip
  Heavy duty on off on spdt toggle
  Tru-oil to finish the body (neck will just be burnished)
  Copper shielding tape
  13 * Fender pickguard screws

Pics to follow this weekend 🤠


cy83r

New member
Messages
18

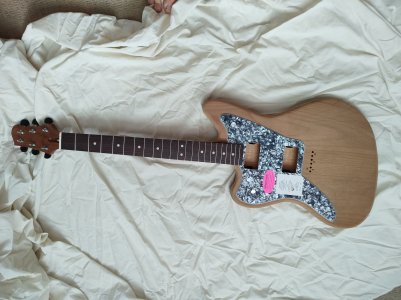

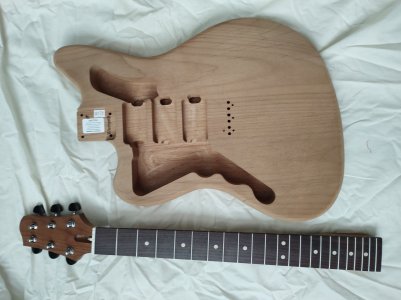

Quality seems good and I think I got quite lucky with the grains everywhere and darkness of fingerboard. Relieved that the neck size and shape (59 roundback 1 3/4) which was a total punt seems great in the hand.  I predict an easy build  :laughing7:


Attachments

  • IMG_20211124_063908727.jpg
    3.3 MB · Views: 38

cy83r

New member
Messages
18

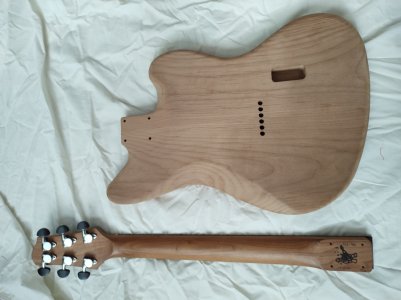

For the weight weenies, body is 1930g or 4lb 4oz in old money, and the neck is 533g (without the tuners)


Attachments

  • IMG_20211124_063618730.jpg
    3.2 MB · Views: 9

cy83r

New member
Messages
18
Disappointed to stumble across another Cybercaster, the Lace Cybercaster - looks like a nice guitar though.

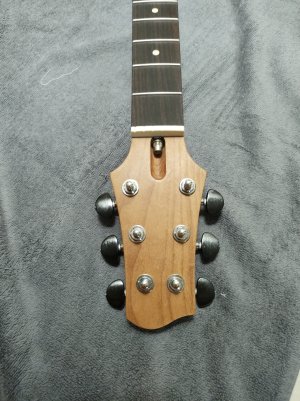

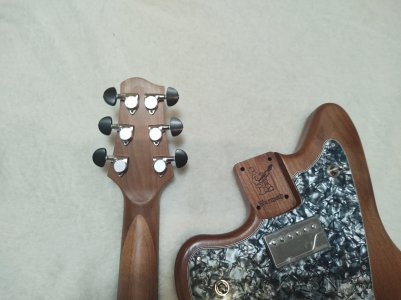

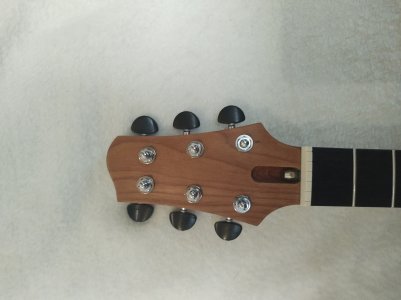

I burnished the neck, lemon oiled the board, improved the fret ends with 400 and 600 sand paper, rolled the board edges with a screwdriver, sanded and applied first 3 coats of Tru oil. All very rushed and underdone but I wanna play this thing!

Having some difficulty adding pics from Android



Attachments

  • IMG_20211127_142218428.jpg
    3.1 MB · Views: 4
  • IMG_20211127_142129628.jpg
    3 MB · Views: 6

cy83r

New member
Messages
18

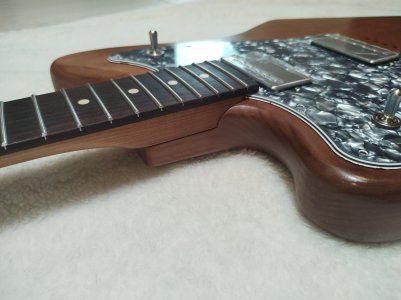

Nothing screwed in, soldered or bolted down yet


Attachments

  • IMG_20211127_142238146.jpg
    2.9 MB · Views: 1
  • IMG_20211127_142258963.jpg
    3.1 MB · Views: 5

cy83r

New member
Messages
18
Copper tape probably pointless with these pickups


Attachments

  • Resizer_16386824132100.jpg
    592.8 KB · Views: 2

cy83r

New member
Messages
18

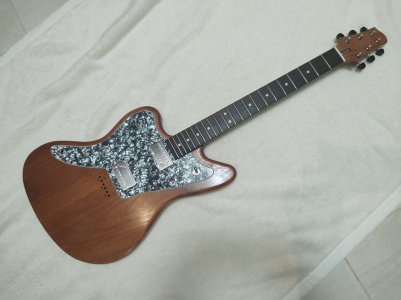

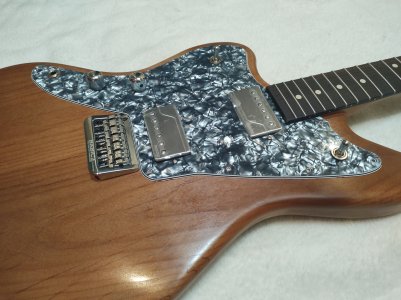

Couple more ticks


Attachments

  • Resizer_16386807297960.jpg
    3.1 MB · Views: 4
  • Resizer_16386807297960.jpg
    3.1 MB · Views: 2
