Connection Question

bobsessed

Junior Member
Messages
60

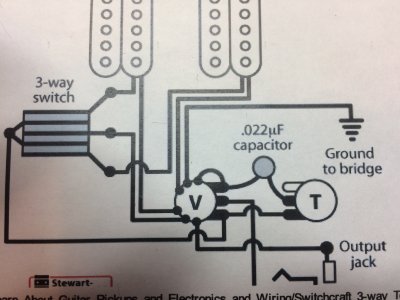

Hello.....Wiring up my new guitar, I need to know about this connection. I want to wire it up without a tone cap first, just to see how it sounds that way....so do I need to make a connection where the cap would normally go as per the diagram, or will it work without? Thanks....


Attachments

  • IMG_0584.JPG
    1.6 MB · Views: 267
You can connect everything as is shown except the capacitor and tone pot, and everything will still work. Except the tone pot that is.

So a wire in place of the cap will make the tone pot work......and not give any trouble, as in feedback or weird noises?

No, you disconnect the capacitor - and don't put any wire in it's place - and it, the wiring, the pickups, volume and so on, will work, but nothing will happen when you turn the tone pot.

Suddenly I think I just realized that the cap is what makes the tone pot change the sound from bright to dark...the pot itself can't change the tone.... am I gettin' that right?  So a wire in place of a cap still won't do anything to the sound?

bobsessed said:
So a wire in place of a cap still won't do anything to the sound?

It'll have the effect of putting another volume control in parallel with the existing volume control, so you'll lose some output even if they're both cranked up to 11. You'll efffectively have two volume controls. Don't do it. Just pull the cap off one side or the other if you wanna know what it sounds like with no tone control. Should have just a tad more bite.

Heads up, an easy way to fairly-accurately guess what a pickup will sound like without the tone cap in play (or with a tone control, if it doesn't have one yet) is to simply imagine how it would sound if you changed pot values. Two 500k pots at '10' dulls the tone the same way one 250k pot will. Two 1 meg pots will have the same effect as one 500k pot.

Another way to think of it is that if you use linear pots (not logarithmic) and turn them to 50%, you're getting the same effect as a lower-resistance pot at 100%. So a 1meg pot at 50% is the same as a 500k pot at 10, etc. This is a bit more haphazard as even so-called linear tapers vary slightly and as pots are usually made to within +/- 10% of their stated resistance value, the 50% mark may not be quite so accurate. But again, it can get you close enough to have a fair idea of what's going on if you change the number of pots or pot values.

It's worth trying, at least once, wiring a guitar up with just a 250k pot on the pickup, and then change it to a 500k pot, and then a 1meg pot, just so you can hear the difference that change makes. Once you've done that once you should then have a good idea of what adding (or removing, as the case may be) a second pot would sound like so you can confidently estimate what is best in future.

A tone control at 10 does bleed off a fraction more treble than a volume control at 10, but it's such a small difference that I wouldn't worry about it; when the control is at maximum like that, the resistance value of the pot is what matters most.
