clean line finish

shanejw

Hero Member
Messages
698
I'm going to be doing my first finish soon.  Flame Maple top on a White Walnut back.  I am wanting to color only the top and apply a clear finish to the back.  Is it simply a matter of taping the top or is there other prep work involved?  What dyes are preferred?  I've been looking at either MEK or Trans Tint dyes.  Oh, and what is a good choice for grain filler?  Any advice, suggestions, pics are appreciated!  Thanks!

Clear line on a dye top is one of the more delicate things to do......bleeding under the masking is an issue, no matter how you mask it.  Clear stripe burst is much less risky.

I think you're supposed to apply some lacquer to the back first, then the dye. That way you can sand back the dye. I recently tried a clean line exactly as you describe but I ended up giving up and sending it to Tonar, which is looking like a very good decision.

If I would have spent much money on this project I would be sending it off to be done in a hearbeat.  I got lucky and won a nice piece of wood on ebay for 5 bucks.  A freind of mine is also an amateur builder and runs a water jet machine to jet out his bodies, so there won't be much spent on this body at all money wise.  It's just something I wanted to try, so if I mess up the clean line too much, I'll sand it back, do a black burst over and do the back black and see what results I get.

I have struggled with this too.  Shooting lacquer like tfary said works but you have to mask the other areas too...and I have found dry wood can still SUCK the dye under the lacquer.

My last attempt (very successful) I masked the area in question and made sure the rag I was applying the dye with was barely wet.  I always worked out from the middle.  If I needed to apply extra application to even out the finish it was never a problem.  Using a soaked rag will alway be an issue.

If you do get a little seepage, it will be small and can be carefully sanded out.

This finiish was in an LPS.  Strats and contours are a little more difficult but can be done...


So I should mask off the top first, since that is what I'm dying, then clear coat the back and sides and then dye the top?

shanejw said:
So I should mask off the top first, since that is what I'm dying, then clear coat the back and sides and then dye the top?

are you asking me or tfarny?  Which method do you want to use?  I like to do all my clear at the same time.....

I think I may try it your way dmraco.  I think as long as I take my time I should be alright.  So a trick is to keep your dying rag fairly dry?

shanejw said:
I think I may try it your way dmraco.  I think as long as I take my time I should be alright.  So a trick is to keep your dying rag fairly dry?

not sopping wet.  Just enough to apply color.  Try it on some scrap.

What type of body are you doing??

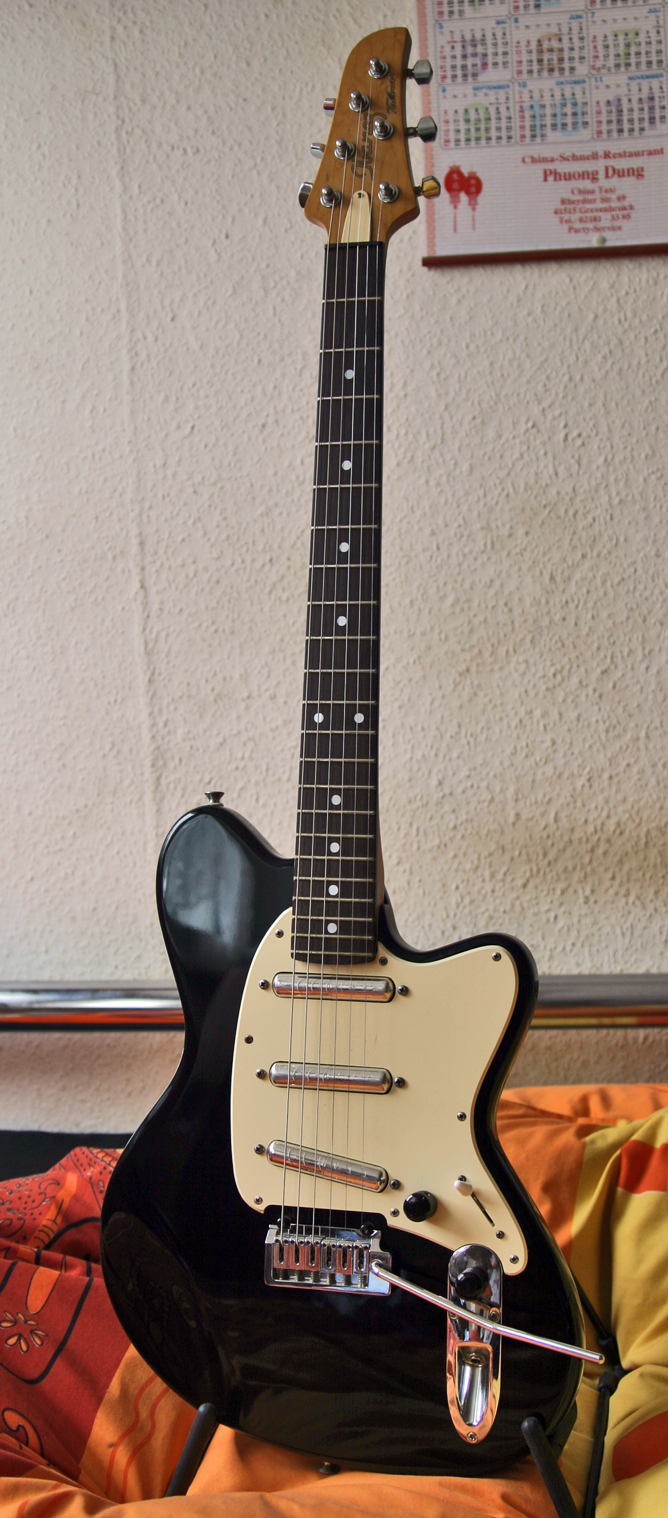

You may think this sounds kind of dorky, but I was always fond of the Ibanez Talmans of the mid 90's.  I'm always looking for them on ebay but can't ever really see anything I would want to buy used so I'm going to try to make one from scratch (mostly).  A freind of mine has a Talman that has been in its case for ten years or better so I'll be doing most of my measuring off of that one, but changing a few things to make it a little more "mine".  I haven't decided if I'm going to have Warmoth or Doug Darling from Soul Mate Guitars make the neck for me.  Thanks for all the info, I'm just trying to prepare as much as possible ahead of time.

I haven't succeeded at this, but dmraco has. Take his advice over mine!  :icon_thumright:

shanejw said:
You may think this sounds kind of dorky, but I was always fond of the Ibanez Talmans of the mid 90's.  I'm always looking for them on ebay but can't ever really see anything I would want to buy used so I'm going to try to make one from scratch (mostly).  A freind of mine has a Talman that has been in its case for ten years or better so I'll be doing most of my measuring off of that one, but changing a few things to make it a little more "mine".  I haven't decided if I'm going to have Warmoth or Doug Darling from Soul Mate Guitars make the neck for me.  Thanks for all the info, I'm just trying to prepare as much as possible ahead of time.

I like it...would look goot with a WARMOTH Warmoth style neck...
