Broadcaster Wiring with 4-Way Switch

[rgand]

I have a 4-way switch that needs a home. It will go into my next build.

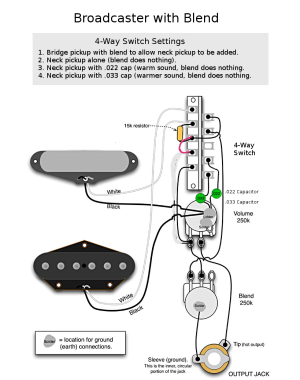

I like the Broadcaster wiring I did in the Telerauder so I modified the wiring diagram to take a 4-way switch. Will someone who knows about the blade switch mechanics take a look and tell me if this will work as planned? Thanks.



[chapogrelo]

Sorry for the crappy editing but I think you should run it like that otherwise you would not connect  any pickup to hot in the 4th position and have no sound. Maybe you could replace the pink wire by a small resistor to tune your low pass filter.



[rgand]

Hey, thanks! That makes perfect sense. That's why I wanted feedback on this. When I wired the guitar with the 3-way switch, I just replaced the resistor with a jumper anyway so a three-terminal jumper would work there. I'll give it a try when I get to wiring the new one.
