“Uh Huh” - Hybrid Strat - Roasted Alder

[HumanisHappy]

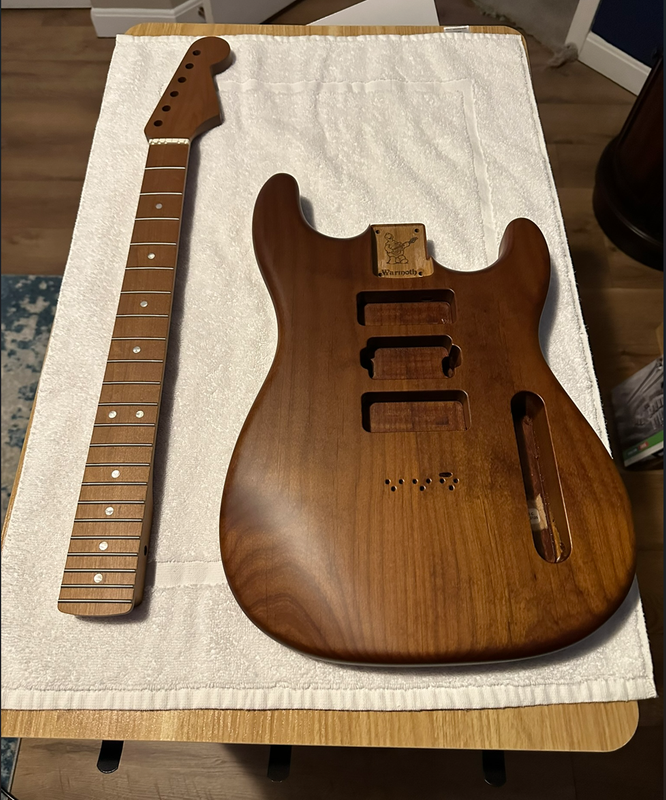

Hey everyone! So I started another new build! I placed an order last night for a hybrid Strat body but added Strat neck. Purchased the neck from the showcase.

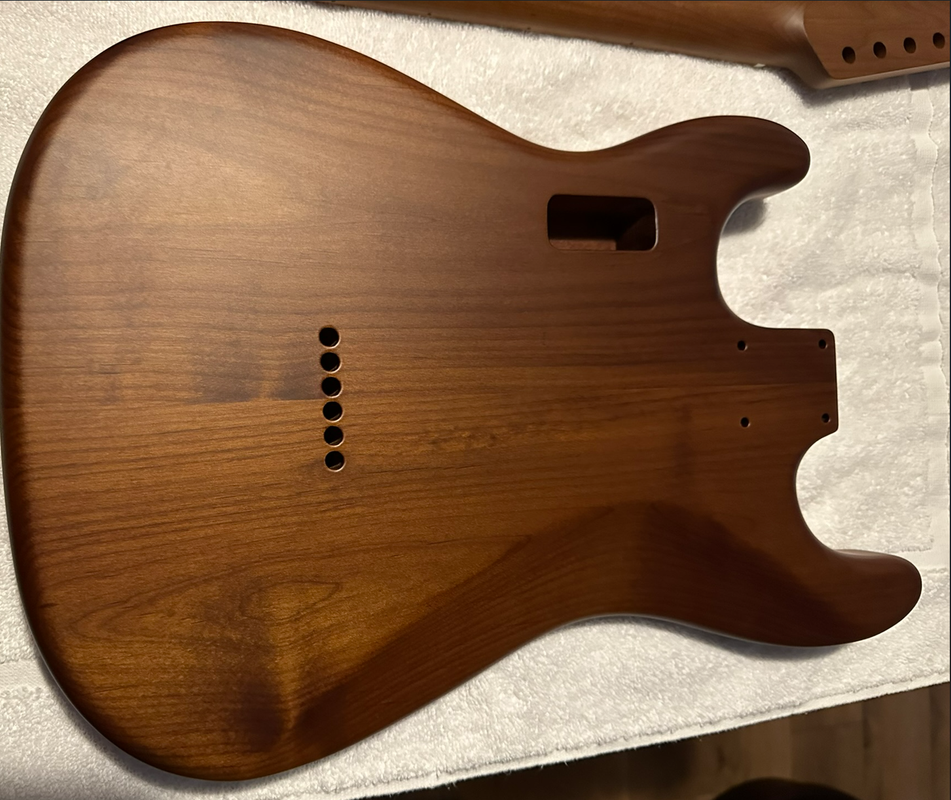

Body:

https://imgur.com/a/y1v3j6p

Hybrid Strat® Replacement Guitar Body
Construction: Solid
Core Wood: Roasted Alder
Lam Top Wood: None
Handedness: Right-Handed
Control Cavity: Top Rout
Pickup Configuration:

• Neck: P90
• Middle: Humbucker
• Bridge: P90

24-Fret Reposition: No
Jack Rout: 7/8” (22mm) Side Jack Hole
Bridge Rout Type: Hardtail
Bridge: Hipshot Hardtail
Mounting Holes: Standard 4-Bolt
Neck Pocket Shape: Strat® (Non-Standard)
Body Contours: Forearm Contour, Tummy Cut
Battery Box: Single Battery Box
Finish:

• Paint Category: Clear
• Top Color: Clear
• Back Color: Clear
• Sheen: Satin

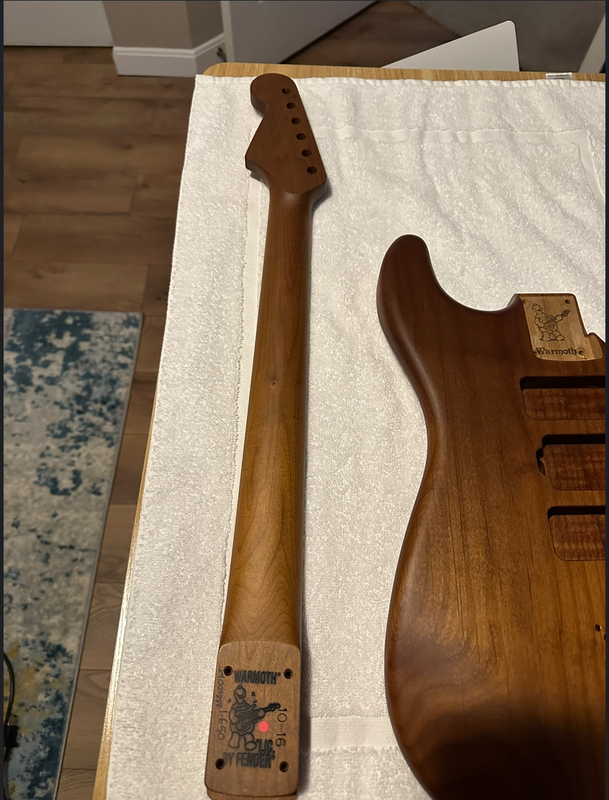

Neck:

https://imgur.com/a/AjYq1Gp

Strat® Replacement Neck
Construction: Modern
Shaft Wood: Roasted Maple
Fretboard Wood: Roasted Maple
Nut Width: 1.650” (42mm) - Vintage Medium
Handedness: Right-Handed
Neck Back Profile: Standard Thin
Fretboard Radius: 10”–16” Compound
Number of Frets: 22
Fret Size & Material: SS6100 - Jumbo (Stainless Steel)
Tuner Hole Size: Schaller / Modern Fender / Sperzel (25/64”)
Inlay Shape: Premium Dots
Inlay Material: White Pearloid
Side Dots: Black
String Nut: Earvana - GraphTech White TUSQ XL
Mounting Holes: Standard 4-Bolt
Neck Heel Shape: Strat®
Finish: Clear Satin Nitro

I haven’t decided which humbucker or P90s I’m going to put in.



[ragamuffin]

Interesting setup with the two p90s and and a hum in the middle! I really like my hybrid strat.

I wonder if you could set it up so that you could split the humbucker in a way that would cancel out the p90 hum in the 2 and 4 positions...



[JohnnyHardtail]

The concept seems great, so I’m a fan. Did you consider a solid colour like Fiesta red or Daphne blue for a bit of contrast?



[JohnnyHardtail]

Humbucker splitting is definitely possible with a 5-way blade. Maybe use the humbucker screw coil in Pos 4 and the slug coil in Pos 2. Then it requires a mini toggle switch to select neck + bridge P90s together.



[HumanisHappy]

The concept seems great, so I’m a fan. Did you consider a solid colour like Fiesta red or Daphne blue for a bit of contrast?

I did, but something about the wood look satisfies me. I absolutely cannot wait to see both the bodies and necks! (My other order is for a pearl white)



[HumanisHappy]

I’m thinking two Gibson P90s (maybe Fralins instead of Gibson’s) with a Seymour Duncan Jazz(neck) in the middle.
