Help with schematic please..

[veets987]

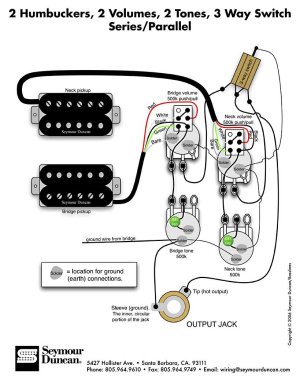

I haven't had any luck locating this myself so was hoping someone could point me to the correct schematic.  I am pretty much wanting this (attached) but instead of having the Push/Pulls on the Volume knobs i want them to be on the tone knobs instead.  I also want to use the 50s les Paul wiring rather than modern.  I will be using this in my 72 tele deluxe reissue.  Thanks in advance!!



[stratamania]

The switch part of the push-pull pot is electrically separate to the pot's volume function. So all you need to do is wire the push-pull parts the same but on the back of the tone pots and then route the wires appropriately from the switches to the volume pots for example.

50s style wiring is basically just using different lugs on the pots here's an article about that.

http://www.seymourduncan.com/blog/tips-and-tricks/lespaulwiring



[veets987]

The switch part of the push-pull pot is electrically separate to the pot's volume function. So all you need to do is wire the push-pull parts the same but on the back of the tone pots and then route the wires appropriately from the switches to the volume pots for example.

50s style wiring is basically just using different lugs on the pots here's an article about that.

http://www.seymourduncan.com/blog/tips-and-tricks/lespaulwiring

Thank you!  I will give it a go.  I will Just have to write out a schematic doing what you said so I don't confuse or drive myself crazy not having something to reference .



[stratamania]

Definitely a good idea to draw it out and have a point of reference.
